The 94HAC08T is an 8-position rotary DIP switch from Grayhill with a maximum current rating of 300mA and a maximum voltage rating of 30V. It operates within a temperature range of -40°C to 85°C and features a through-hole package. The switch is made of plastic with copper alloy contacts plated with gold and nickel. It is RoHS compliant and has a mechanical life of 10,000 cycles.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 94HAC08T technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Mount | Through Hole |
| Number of Positions | 8 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 94H |
| Termination | PC Pins |
| Throw Configuration | SP8T |
| DC Rated Voltage | 50V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 94HAC08T Datasheet
Download the complete datasheet for Grayhill 94HAC08T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

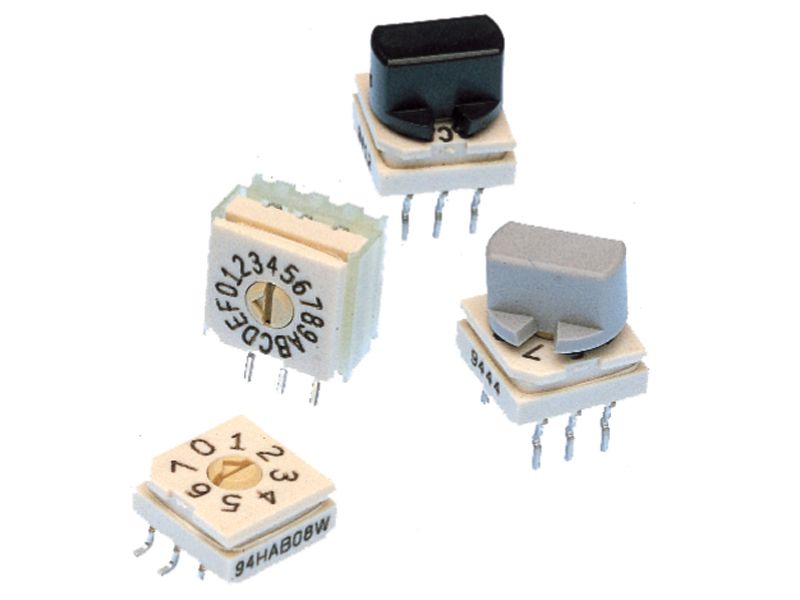

Product Images
