16-position rotary coded switch featuring a hexadecimal complement output. Offers a latched mechanism with a 300mA max current rating and 30VDC max voltage rating. Constructed with a plastic body and actuator, copper alloy contacts with gold/nickel plating, and PC pin terminations for through-hole mounting. Designed for 10,000 electrical and mechanical cycles, operating from -40°C to 85°C, and is RoHS compliant and washable.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 94HBC16T technical specifications.
General
| Actuator Length | 6.86mm |
| Actuator Material | Plastic |
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 10000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Mount | Through Hole |
| Number of Positions | 16 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | 94H |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SP16T |
| DC Rated Voltage | 50V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 94HBC16T Datasheet
Download the complete datasheet for Grayhill 94HBC16T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

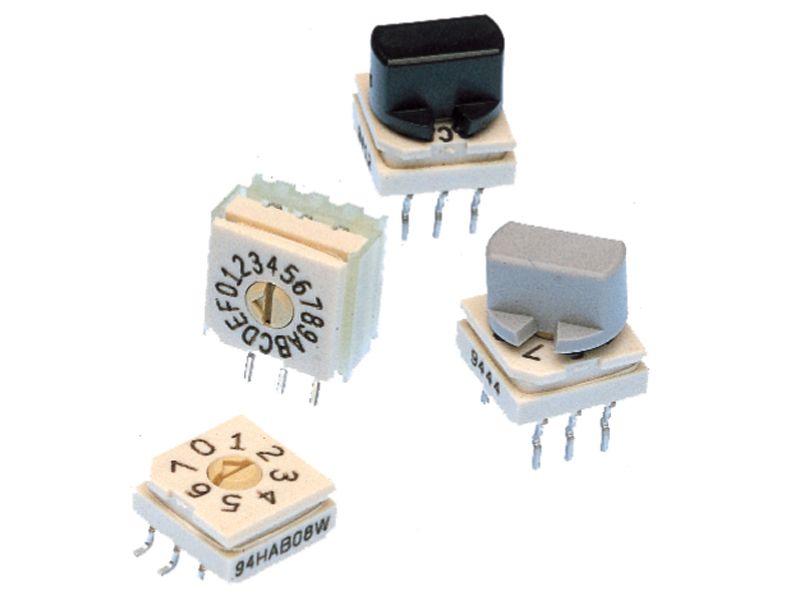

Product Images
