10-position rotary coded switch, Binary Coded Decimal (BCD) output, featuring a latched mechanism. Offers 0.03A at 30VDC, with a maximum current rating of 300mA and a DC rated voltage of 50V. Constructed with a plastic body and actuator, copper alloy contacts with gold/nickel plating, and solder terminals. Designed for through-hole, right-angle PCB mounting with a 2.54mm terminal pitch. Electrical and mechanical life rated at 10,000 cycles, operating between -40°C and 85°C.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 94HEB10RAT technical specifications.
General
| Actuator Length | 2.29mm |
| Actuator Material | Plastic |
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 10000Cycles |
| Lead Free | Lead Free |
| Material | Plastic |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Positions | 10 |
| Number of Switches | 10 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 94H |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SP10T |
| DC Rated Voltage | 50V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 94HEB10RAT Datasheet
Download the complete datasheet for Grayhill 94HEB10RAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

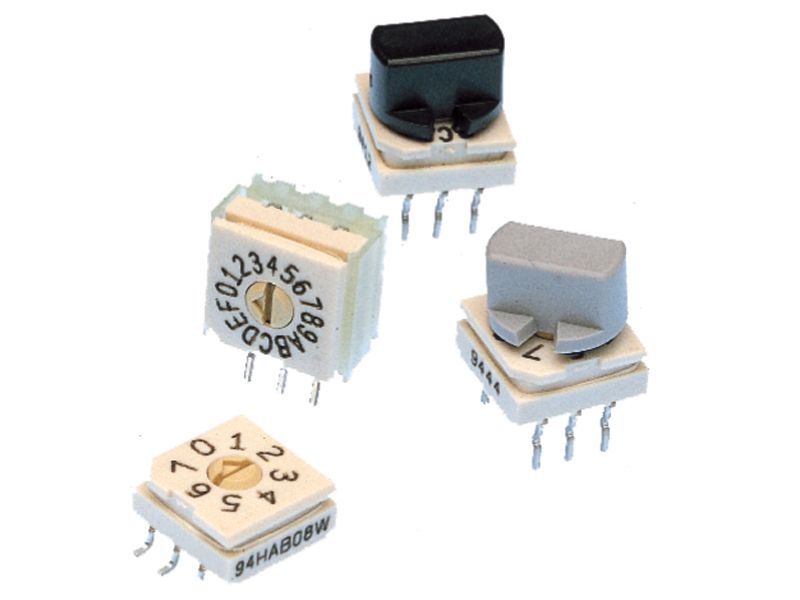

Product Images
