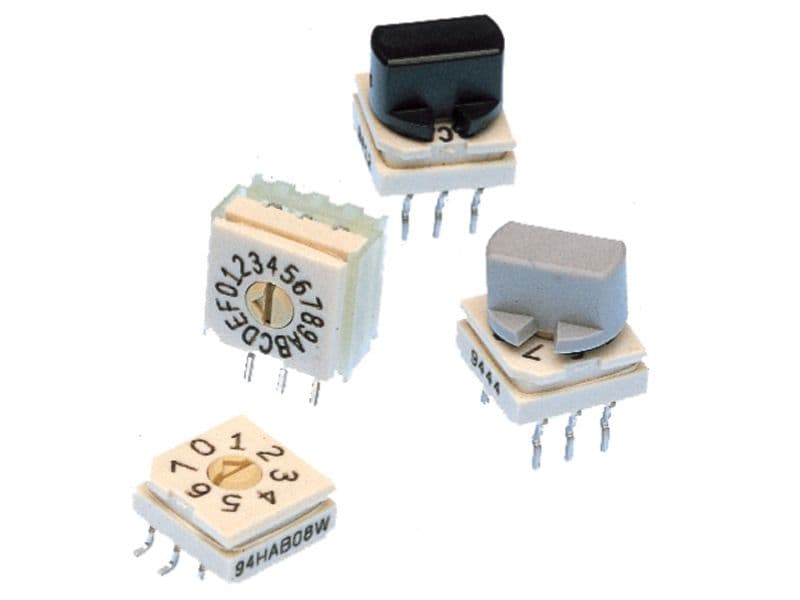

This 10-position rotary DIP switch is rated for 300mA and 30V DC, with a maximum operating temperature of 85°C. It features a plastic body with copper alloy contacts plated with gold and nickel. The switch is designed for surface mount applications and is packaged on a tape and reel. It is compliant with RoHS regulations and can be washed for cleaning.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 94HEB10WRT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Surface Mount |
| Number of Positions | 10 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 94H |
| Termination | Gull Wing |
| Throw Configuration | SP10T |
| DC Rated Voltage | 50V |
| Washable | Yes |
| RoHS | Compliant |
