This 16-position rotary DIP switch is designed for surface mount applications and features a plastic body with copper alloy contacts plated with gold. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The switch is rated for a maximum voltage of 30V and has a mechanical life of 10,000 cycles. It is lead free and RoHS compliant, making it suitable for a wide range of applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 94HFB16JRT technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Surface Mount |
| Number of Positions | 16 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 94H |
| Termination | J-Lead |
| Throw Configuration | SP16T |
| DC Rated Voltage | 50V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 94HFB16JRT Datasheet
Download the complete datasheet for Grayhill 94HFB16JRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

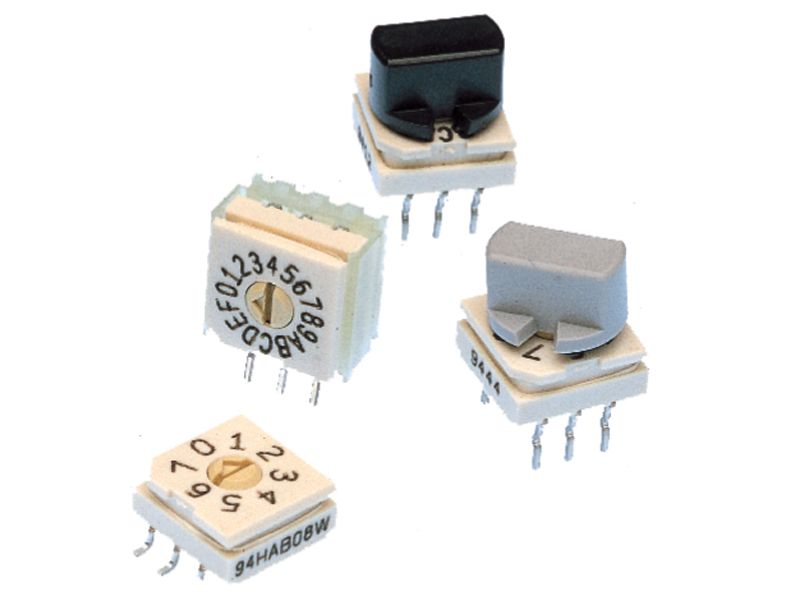

Product Images
