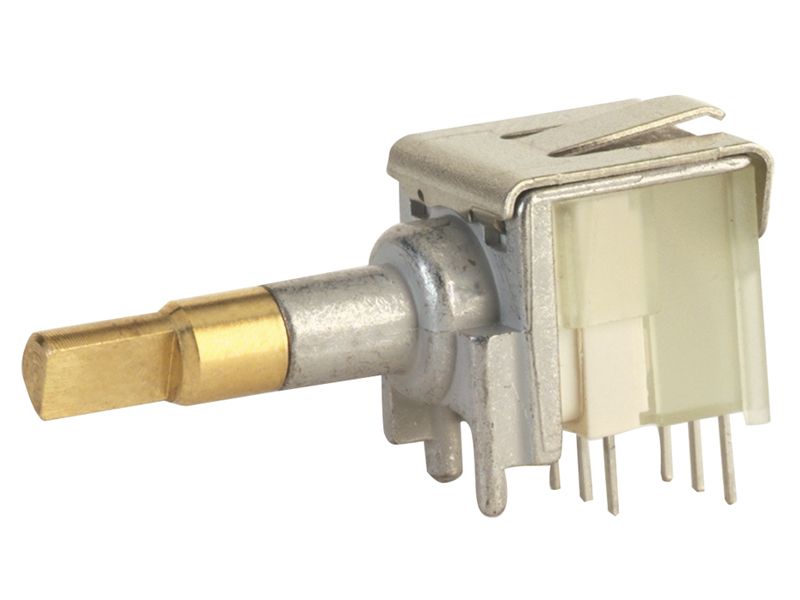

This 16-position right angle rotary switch has a maximum operating temperature range of -40°C to 85°C and a maximum current rating of 300mA. It is designed for through hole mounting and has a maximum voltage rating of 30V. The switch has a mechanical life of 10,000 cycles and an electrical life of 10,000 cycles. It is RoHS compliant and features a copper alloy contact material with gold and nickel plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 94RB16FT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 10000Cycles |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Mount | Through Hole |
| Number of Positions | 16 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 94R |
| Termination | PC Pins |
| Throw Configuration | SP16T |
| DC Rated Voltage | 30V |
| Washable | Yes |
| RoHS | Compliant |
