Technical Specifications
Grayhill 94RC08CT technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 10000Cycles |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 8 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | 94R |
| Termination | PC Pin |
| Throw Configuration | SP8T |
| DC Rated Voltage | 30V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 94RC08CT Datasheet
Download the complete datasheet for Grayhill 94RC08CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

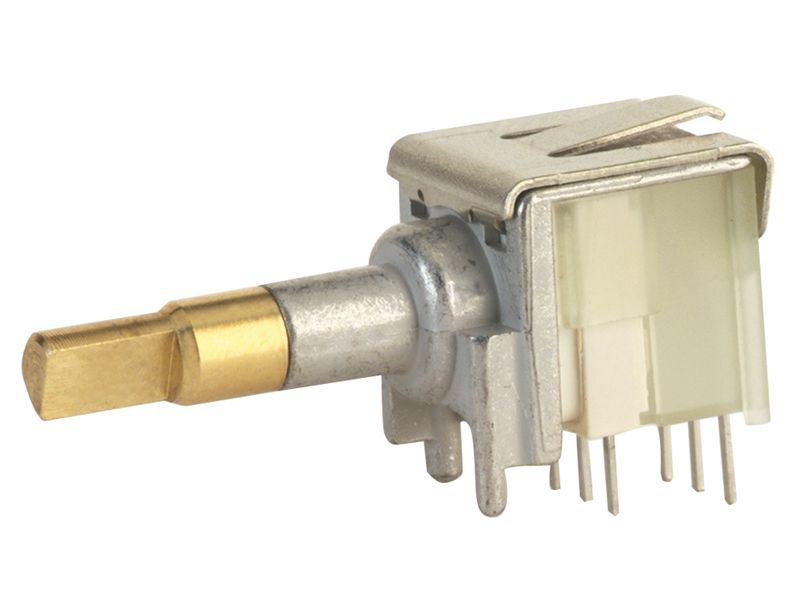

Product Images
