SPST tactile switch featuring a black nylon actuator with a standard, non-illuminated round button. Surface mountable with gull wing terminations, this component offers a 0.98N operating force and 0.25mm travel. Rated for 50mA and 12VDC, it boasts a mechanical life of 1,000,000 cycles and operates within a temperature range of -25°C to 70°C. Packaged in tape and reel, it is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C06A2GWRT technical specifications.
General
Actuator Color
Black
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
9mm
Illumination Type
Non-Illuminated
Length
6.2mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Surface Mount
Operating Force
0.98N
Orientation
Straight
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C06A2GWRT Datasheet
Download the complete datasheet for Grayhill 95C06A2GWRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

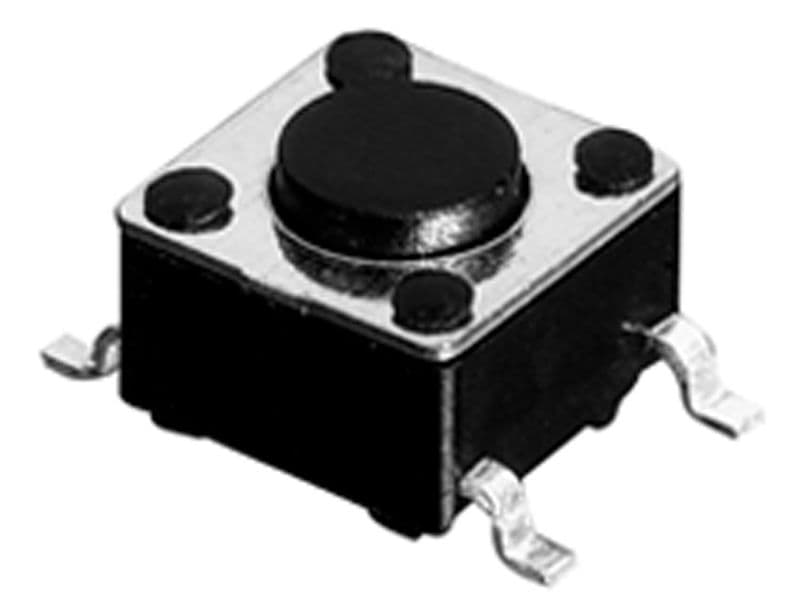

Product Images
