SPST tactile switch featuring a non-illuminated, yellow nylon/polyamide round button actuator. This surface mount device utilizes gull wing terminations and offers a mechanical life of 300,000 cycles. Rated for 50mA at 12VDC, it operates with a 5.1N force and a 0.25mm travel. The switch is designed for straight orientation and is supplied in a rail/tube package.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C06B6GWT technical specifications.
General
Actuator Color
Yellow
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
9mm
Illumination Type
Non-Illuminated
Length
6.2mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
300000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
5.1N
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C06B6GWT Datasheet
Download the complete datasheet for Grayhill 95C06B6GWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

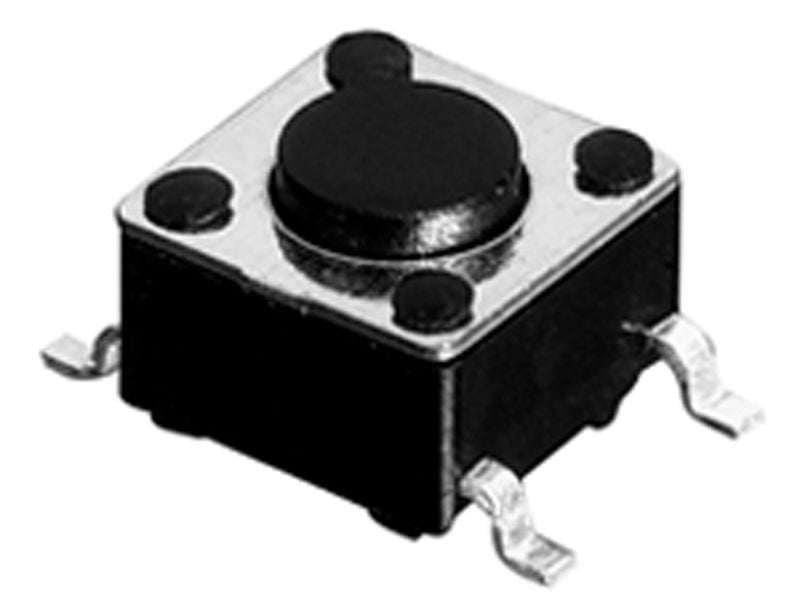

Product Images
