SPST tactile switch with a non-illuminated, round brown nylon actuator. Features a 1.57N operating force, 0.25mm travel, and a mechanical life of 1,000,000 cycles. Rated for 50mA and 12VDC, with stainless steel contacts plated in silver. Surface mountable with gull wing terminations, packaged in tape and reel, and RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C06E3GWRT technical specifications.
General
| Actuator Color | Brown |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Material | Stainless Steel |
| Contact Plating | Silver |
| Depth | 9mm |
| Illumination Type | Non-Illuminated |
| Length | 6.2mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Operating Force | 1.57N |
| Orientation | Straight |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | 95C |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 95C06E3GWRT Datasheet
Download the complete datasheet for Grayhill 95C06E3GWRT to view detailed technical specifications.
No datasheet is available for this part.

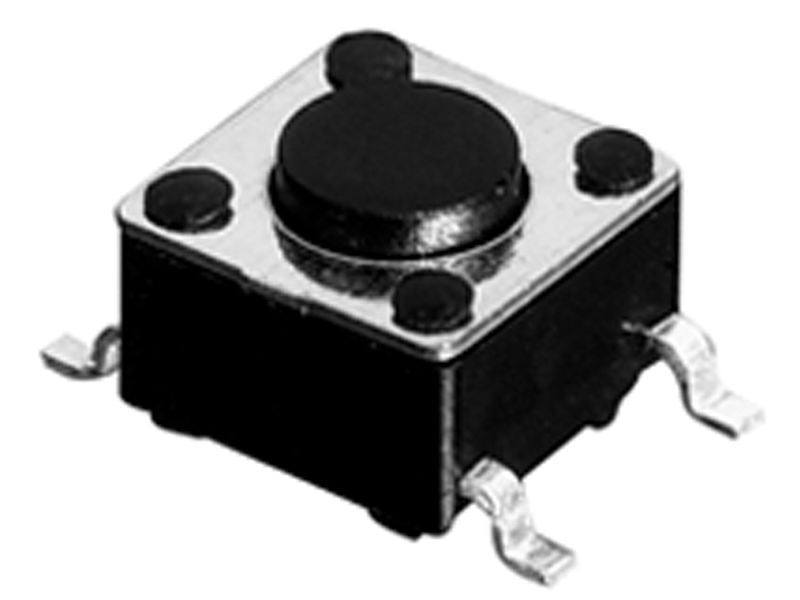

Product Images
