SPST tactile switch featuring a non-illuminated, round brown nylon actuator with a standard type. Surface mountable with gull wing termination, this component offers a 0.05A at 12VDC rating and a 1.57N operating force. Constructed with stainless steel contacts plated in silver, it boasts a mechanical life of 1,000,000 cycles and operates within a temperature range of -25°C to 70°C. Packaged in tape and reel, this RoHS compliant switch has a 0.35mm travel.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C12B3GWRT technical specifications.
General
Actuator Color
Brown
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
15mm
Illumination Type
Non-Illuminated
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
1.57N
Orientation
Straight
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C12B3GWRT Datasheet
Download the complete datasheet for Grayhill 95C12B3GWRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

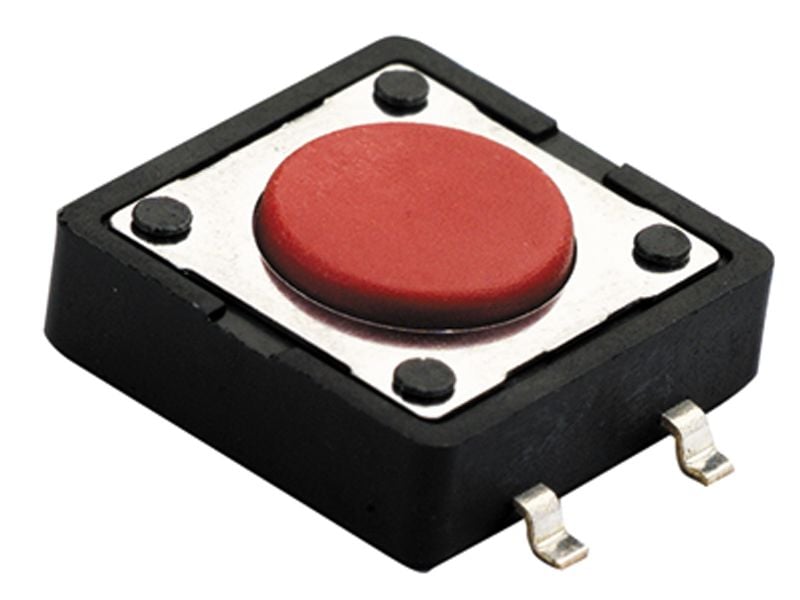

Product Images
