Technical Specifications
Grayhill 95C12C4GWRT technical specifications.
General
Actuator Color
Red
Actuator Material
Nylon, Polyamide
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
15mm
Illumination Type
Non-Illuminated
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
2.55N
Orientation
Straight
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C12C4GWRT Datasheet
Download the complete datasheet for Grayhill 95C12C4GWRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

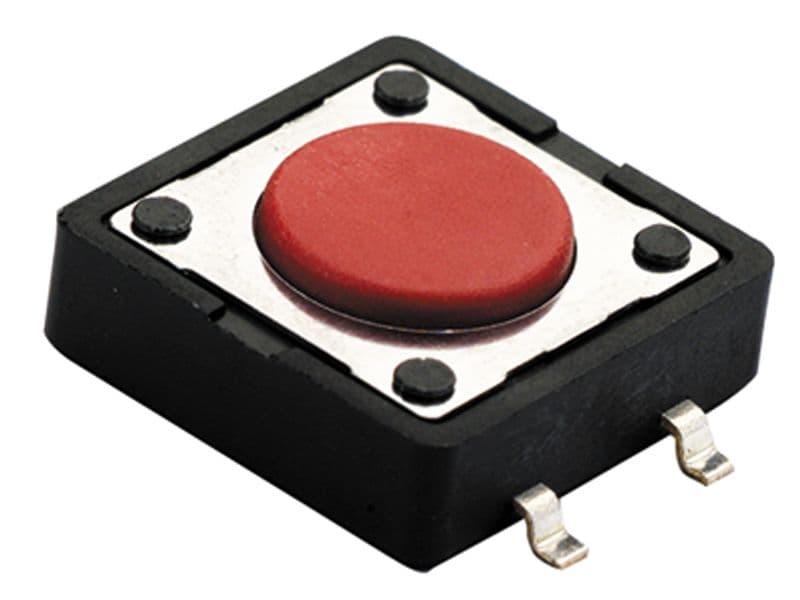

Product Images
