SPST tactile switch featuring a non-illuminated, silver rubber actuator with a standard type. This surface mount component utilizes J-lead termination and offers a mechanical life of 100,000 cycles. Rated for 50mA at 12VDC, it operates within a temperature range of -25°C to 70°C with an operating force of 1.57N and a travel of 0.45mm.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95CW06A1JT technical specifications.
General
Actuator Color
Silver
Actuator Material
Rubber
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
6.8mm
Illumination Type
Non-Illuminated
Length
6.8mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
1.57N
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.45mm
Termination
J-Lead
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95CW06A1JT Datasheet
Download the complete datasheet for Grayhill 95CW06A1JT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

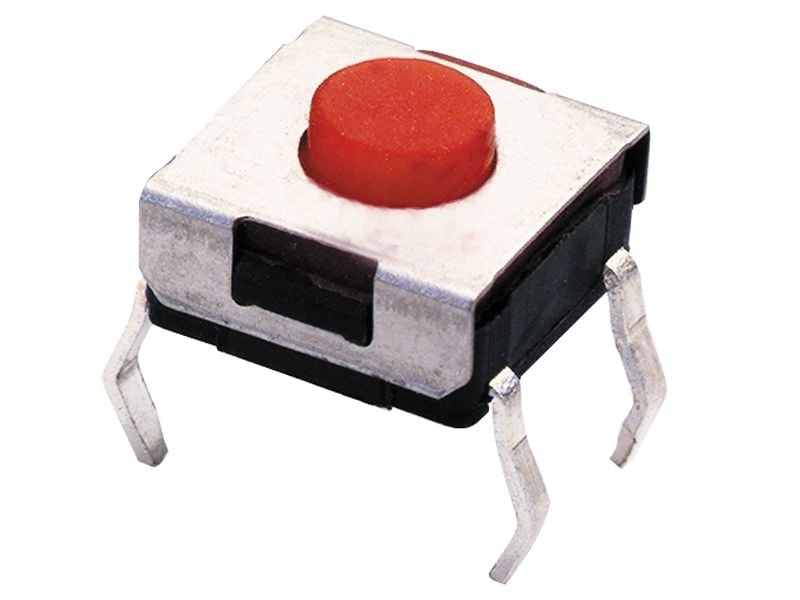

Product Images
