Grayhill
95CW06C2GWT
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.77N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95CW06C2GWT technical specifications.
General
Actuator Color
Brown
Actuator Material
Rubber
Actuator Type
Standard
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
5.8mm
Illumination Type
Non-Illuminated
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Mount
Surface Mount
Operating Force
1.77N
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.45mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95CW06C2GWT Datasheet
Download the complete datasheet for Grayhill 95CW06C2GWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

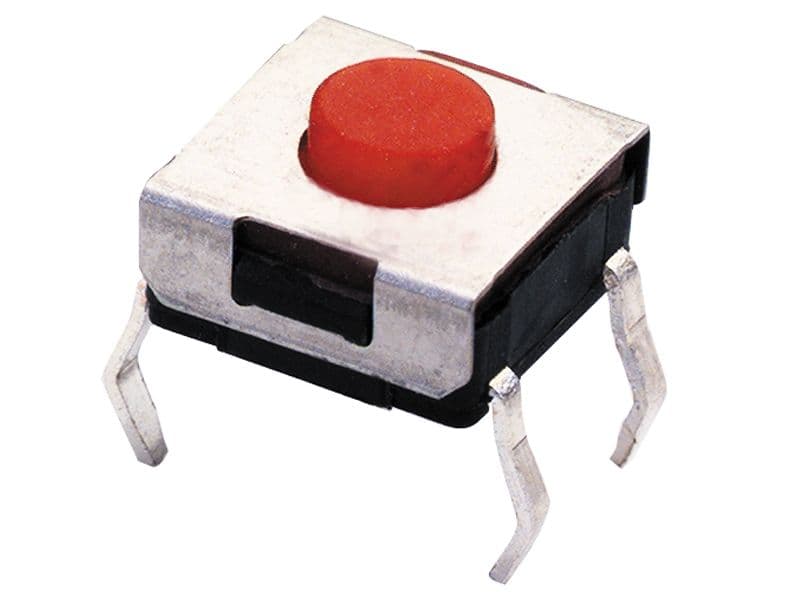

Product Images
