SPST tactile switch featuring a yellow rubber, standard actuator and gull wing termination for SMD mounting. This non-illuminated component offers a 5.1N operating force, 0.45mm travel, and a mechanical life of 50,000 cycles. Rated for 12VDC and 50mA, it utilizes stainless steel contacts with silver plating and operates within a temperature range of -25°C to 70°C. Packaged in a rail/tube, this RoHS compliant switch is designed for surface mount applications.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95CW06D4GWT technical specifications.
General
Actuator Color
Yellow
Actuator Material
Rubber
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
5.8mm
Illumination Type
Non-Illuminated
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
5.1N
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.45mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95CW06D4GWT Datasheet
Download the complete datasheet for Grayhill 95CW06D4GWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

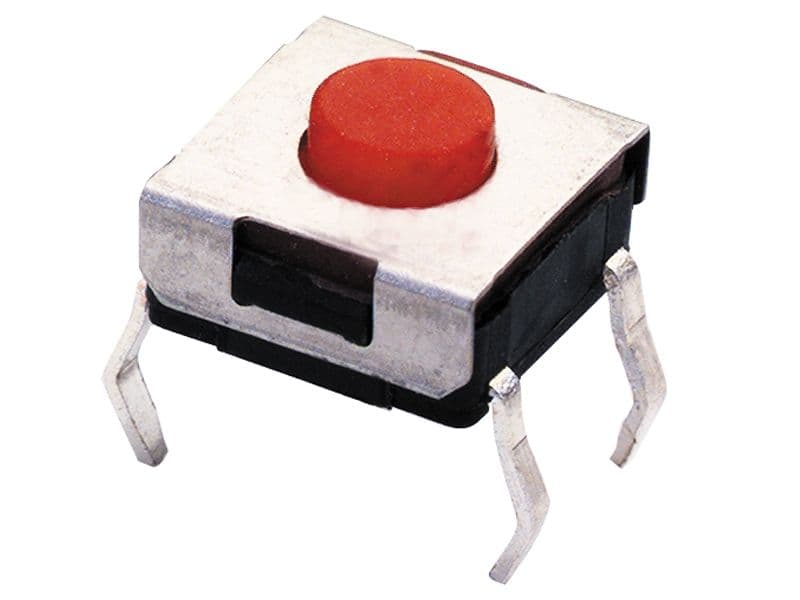

Product Images
