SPST tactile switch with a non-illuminated, round, clear rubber actuator. Features silver-plated stainless steel contacts and PC pin terminations for through-hole mounting. Rated for 0.05A at 12VDC, with an operating force of 3.53N and a mechanical life of 500,000 cycles. Operates within a temperature range of -25°C to 70°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 95CW06D5T technical specifications.
General
Actuator Color
Clear
Actuator Material
Rubber
Actuator Type
Standard
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
7.9mm
Illumination Type
Non-Illuminated
Length
6.3mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Operating Force
3.53N
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.45mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95CW06D5T Datasheet
Download the complete datasheet for Grayhill 95CW06D5T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

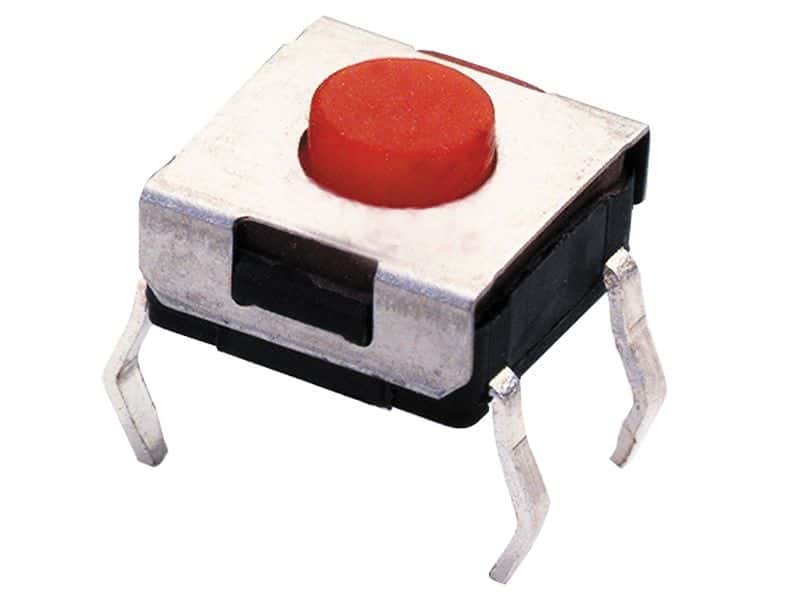

Product Images
