SPST tactile switch with a non-illuminated, round brown rubber actuator. Features PC pin termination for through-hole mounting and a straight orientation. Rated for 0.05A at 12VDC, with a mechanical life of 500,000 cycles. Operating force is 1.77N, and switch travel is 0.45mm. Constructed with stainless steel contacts plated in silver, operating within a temperature range of -25°C to 70°C. RoHS compliant and supplied in tube packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 95CW06E2T technical specifications.
General
Actuator Color
Brown
Actuator Material
Rubber
Actuator Type
Standard
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
7.9mm
Illumination Type
Non-Illuminated
Length
6.3mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Through Hole
Operating Force
1.77N
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.45mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95CW06E2T Datasheet
Download the complete datasheet for Grayhill 95CW06E2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

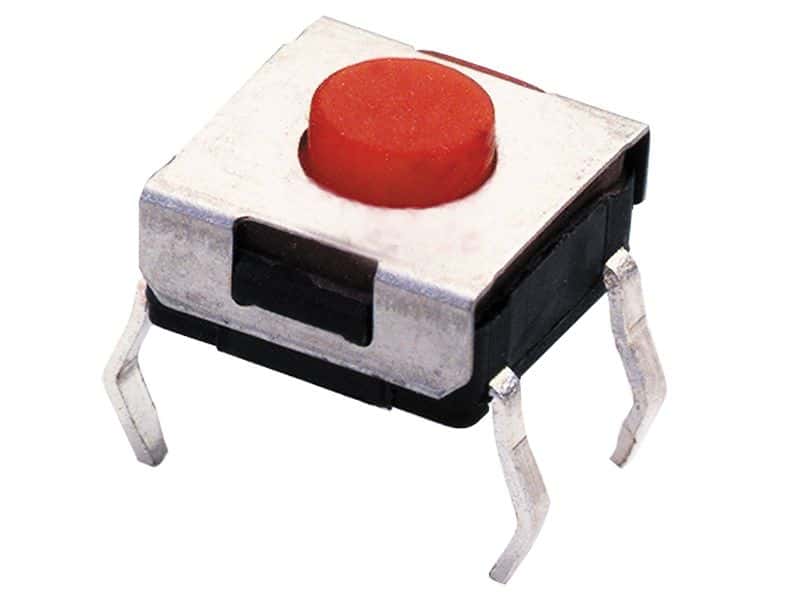

Product Images
