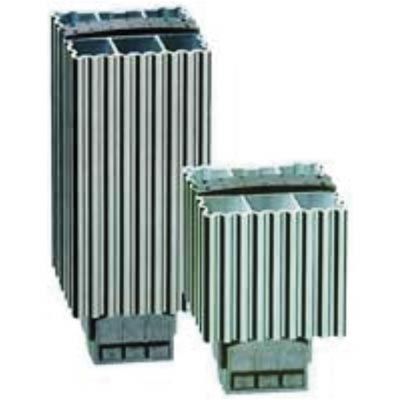

This industrial heater from Hammond has a current rating of 1.5A and a power dissipation of 15W. It operates at a maximum supply voltage of 250V and is constructed from aluminium. The heater measures 3.53 inches in height, 2.8 inches in length, and 2 inches in width, with a weight of 1lb. It is designed for DIN rail mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond SHG14000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 1.5A |
| Height | 3.53inch |
| Length | 2.8inch |
| Material | Aluminium |
| Operating Supply Voltage | 250V |
| Output Power | 15W |
| Package Quantity | 1 |
| Power Dissipation | 15W |
| Reach SVHC Compliant | No |
| Series | SHG |
| Voltage Rating (AC) | 250V |
| Weight | 1lb |
| Width | 2inch |
| RoHS | Compliant |
Download the complete datasheet for Hammond SHG14000 to view detailed technical specifications.
