The HT7550-1-SOT89TRLF is a single-channel linear voltage regulator with a nominal output voltage of 5V and a maximum output current of 100mA. It operates within a temperature range of -40°C to 85°C and has a dropout voltage of 100mV. The device is packaged in a SOT-89 case and is suitable for surface mount applications. It can handle a maximum supply voltage of 24V and a minimum supply voltage of 4V. The HT7550-1-SOT89TRLF is not compliant with Reach SVHC regulations.
PackageSOT-89
Quick Jump:
Technical Specifications
Holtek HT7550-1-SOT89TRLF technical specifications.
General
| Package/Case | SOT-89 |
| Dropout Voltage | 100mV |
| Max Input Voltage | 24V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 4V |
| Nominal Output Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Holtek HT7550-1-SOT89TRLF Datasheet
Download the complete datasheet for Holtek HT7550-1-SOT89TRLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

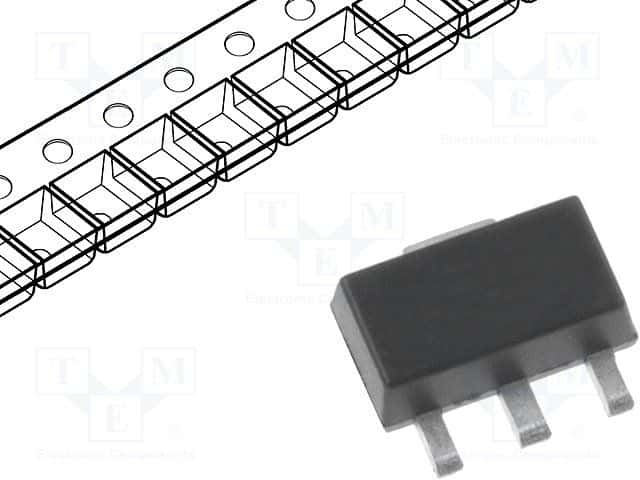

Product Images
