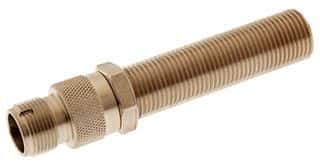

The .3030AN25 is a high output VRS coil with a resistance of 1.2kR and inductance of 450mH. It operates at a maximum temperature of 120°C and a minimum temperature of -55°C. The coil is made of stainless steel and has a weight of 84g. It is available in a single package quantity and has a termination of connector.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell .3030AN25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Resistance | 1.2kR |
| Depth | 91.88mm |
| Diameter | 159mm |
| Frequency | 15kHz |
| Inductance | 450mH |
| Lead Free | Exempt |
| Length | 92mm |
| Material | Stainless Steel |
| Max Frequency | 15kHz |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -55°C |
| Output Voltage | 190V |
| Package Quantity | 1 |
| Series | High Output VRS |
| Termination | Connector |
| Weight | 84g |
| Width | 19.05mm |
| RoHS | Not Compliant |
Download the complete datasheet for Honeywell .3030AN25 to view detailed technical specifications.
