Snap acting/limit switch featuring SPDT throw configuration and On-Mom switch function. Rated for 5A current and 250V AC / 30V DC voltage. Offers a mechanical life of 10,000,000 cycles with a wide operating temperature range of -55°C to 125°C. Mounting options include chassis mount, screw, and solder termination. Differential travel is 0.025 inches with an operating force of 1.95N.
Current Rating5A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 111SM2-T2 technical specifications.
General
| Contact Current Rating | 5A |
| Current Rating | 5A |
| Depth | 6.35mm |
| Differential Travel | 0.025inch |
| Length | 19.84mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 1.95N |
| Operating Position | 0.562inch |
| Orientation | Straight |
| Overtravel | 0.03inch |
| Package Quantity | 20 |
| Packaging | Bulk |
| Pretravel | 0.218inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SM |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 3.63g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 111SM2-T2 Datasheet
Download the complete datasheet for Honeywell 111SM2-T2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

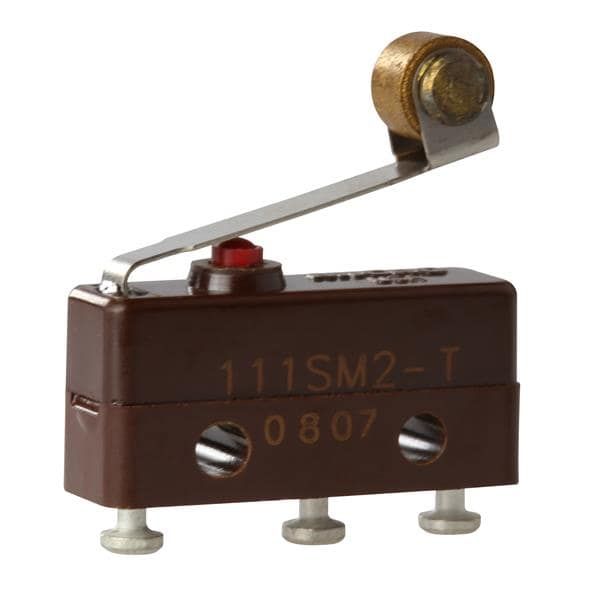

Product Images
