This 15A chassis mount rotary switch is designed for use in applications where a high current rating is required. It features a SPDT throw configuration and is rated for 120V AC and 125V DC. The switch has a maximum operating temperature range of -25°C to 85°C and is compliant with UL and CSA approvals. It is packaged in bulk and has a RoHS compliant design.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 11CX11B-D01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

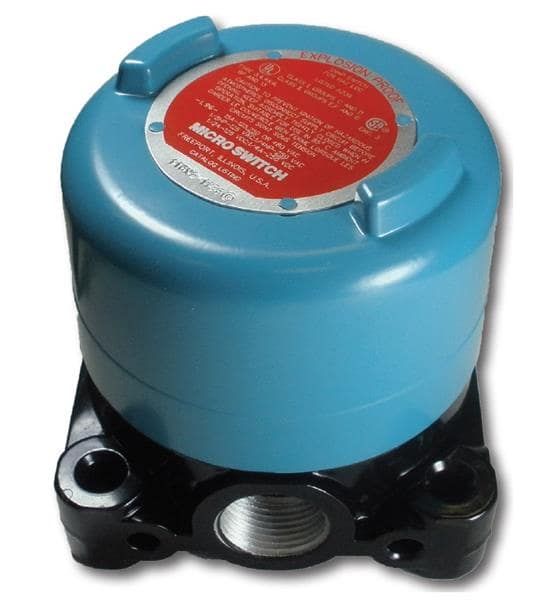

Honeywell 11CX11B-D01 technical specifications.
| Actuator Type | Rotary |
| Approvals | UL, CSA |
| Current Rating | 15A |
| Depth | 105.38mm |
| Height | 101.6mm |
| Length | 101.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 0.5N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | CX |
| Switch Function | On-On |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell 11CX11B-D01 to view detailed technical specifications.
