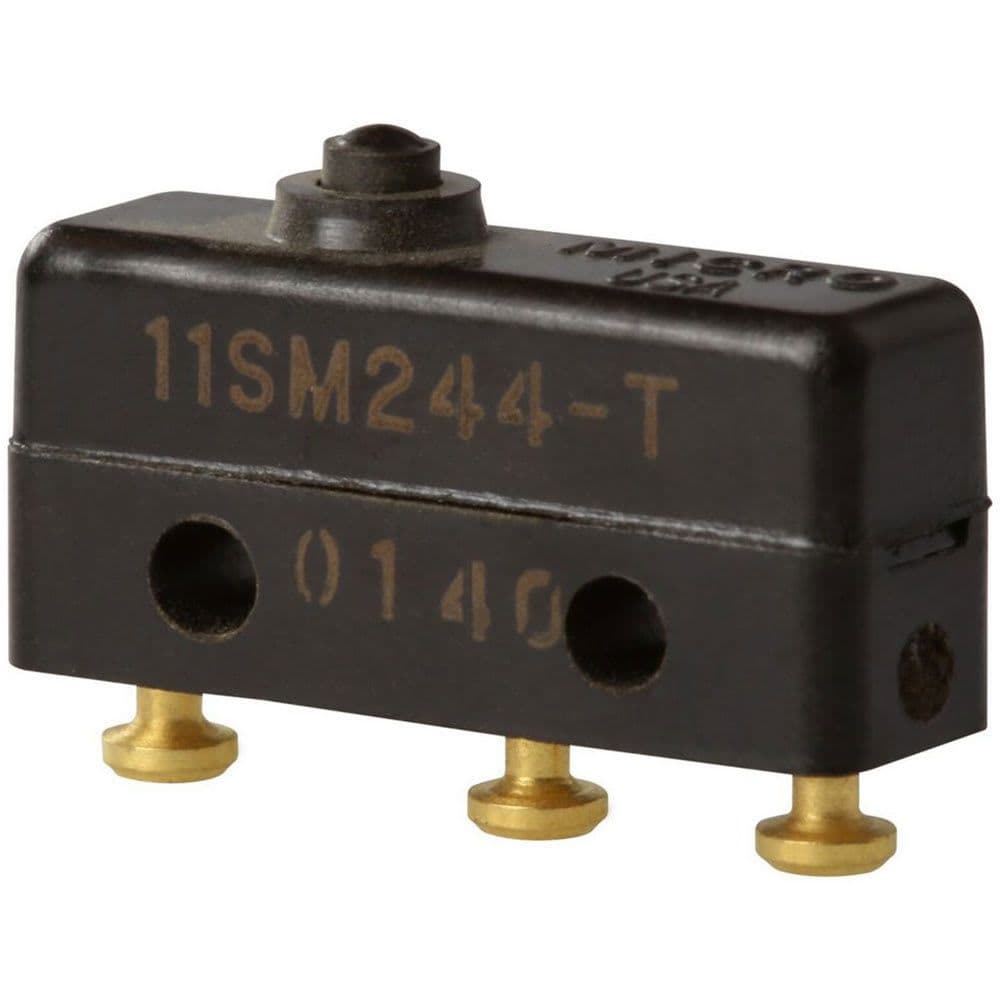

SPDT momentary snap acting switch with solder terminals and a straight through-hole mount. Features a plastic plunger actuator, gold contacts, and a 1A, 30VDC rating. Operates within a temperature range of -53°C to 121°C with a mechanical life of 10 million cycles. Includes a 139N operating force and 0.015-inch operating position.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell 11SM23-H2 technical specifications.
General
Actuator Material
Plastic
Contact Material
Gold
Current Rating
1A
Depth
6.35mm
Length
19.84mm
Max Current Rating
1A
Max Operating Temperature
121°C
Min Operating Temperature
-53°C
Max Voltage Rating (DC)
30V
Mechanical Life
10000000Cycles
Mount
Through Hole
Operating Force
139N
Operating Position
0.015inch
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
272g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM23-H2 Datasheet
Download the complete datasheet for Honeywell 11SM23-H2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
