SPDT snap acting/limit switch featuring a plastic actuator and gold contacts. Rated for 1A at 125V AC and 30V DC, with a mechanical life of 10 million cycles. Operates within a temperature range of -55°C to 125°C and requires a 1.39N operating force. Termination is solder, with mounting options including chassis, panel, screw, and solder.
Current Rating1A
MountingChassis Mount, Panel, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 11SM23-H4 technical specifications.
General
Actuator Material
Plastic
Contact Material
Gold
Current Rating
1A
Depth
6.35mm
Length
19.84mm
Max Current Rating
1A
Max Operating Temperature
125°C
Max Voltage Rating (DC)
30V
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Panel, Screw, Solder
Operating Force
1.39N
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
2.72g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM23-H4 Datasheet
Download the complete datasheet for Honeywell 11SM23-H4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

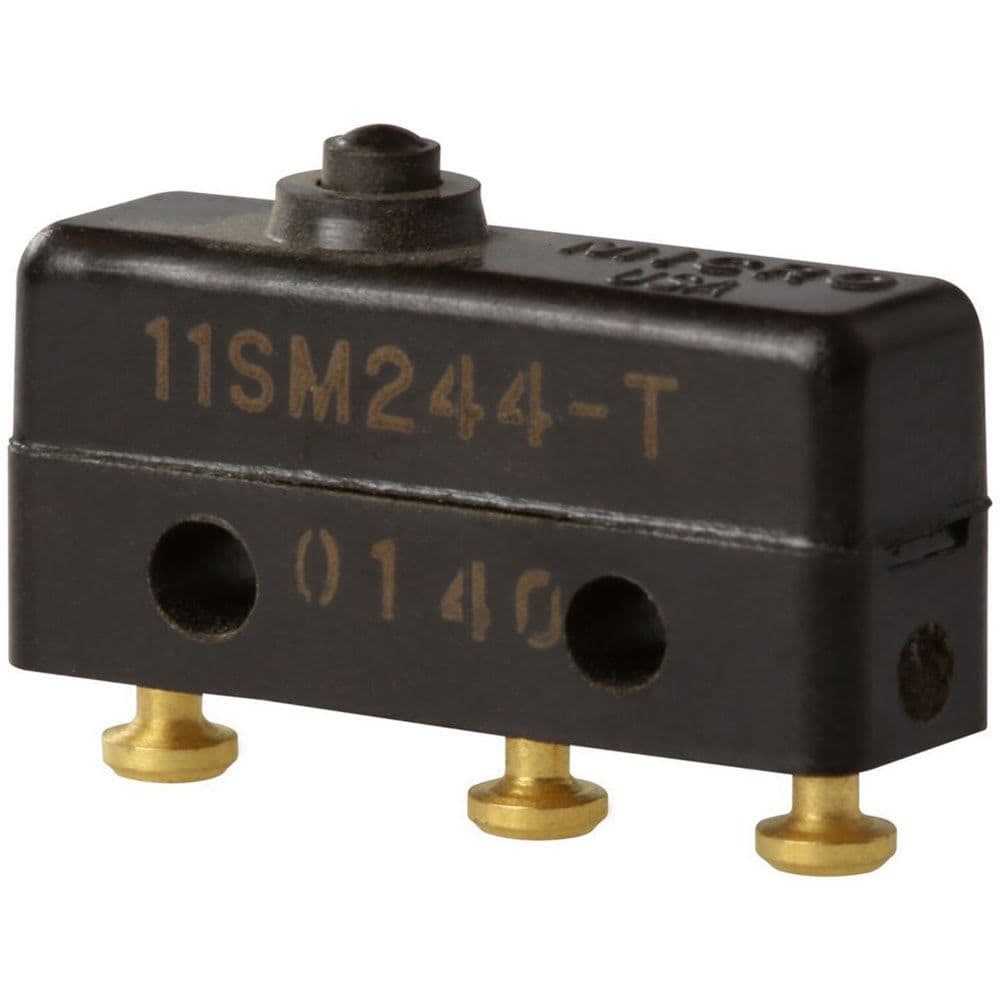

Product Images
