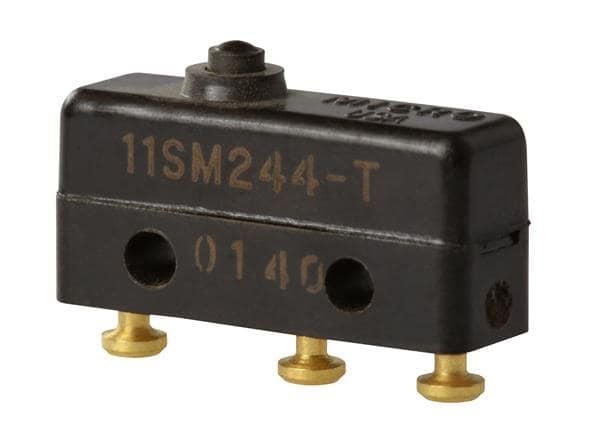

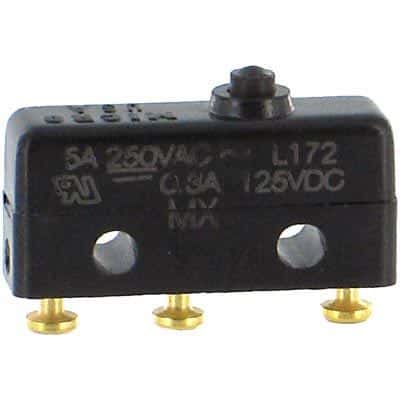

SPDT momentary snap acting switch with a spherical plastic plunger actuator. Features a 5A contact current rating at 125VDC and 250VAC, with silver contacts. Operates within a temperature range of -55°C to 125°C and offers a mechanical life of 10 million cycles. Mounting options include chassis mount, screw, and solder terminals. RoHS compliant and UL/CSA approved.
Package125
Current Rating5A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 11SM244-T technical specifications.
General
Actuator Type
PLUNGER
Approvals
UL, CSA
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Depth
6.4mm
Length
19.8mm
Max Current Rating
5A
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw, Solder
Number of Poles
1
Number of Positions
2
Operating Force
139N
Operating Position
0.015inch
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
272g
Width
19.8mm
Compliance
RoHS
Compliant
