SPDT momentary snap acting switch with a 5A current rating and 30VDC voltage rating. Features a plastic plunger actuator, silver contacts, and screw/solder termination. Operates within a temperature range of -53°C to 121°C with a mechanical life of 10,000,000 cycles. Designed for panel mounting with a 0.63mm actuator travel and 139N operating force.
Current Rating5A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 11SM3 technical specifications.
General
Actuator Material
Plastic
Contact Material
Silver
Current Rating
5A
Depth
6.35mm
Length
19.84mm
Max Current Rating
5A
Max Operating Temperature
121°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-53°C
Max Voltage Rating (DC)
30V
Mount
Chassis Mount, Screw, Solder
Operating Force
139N
Operating Position
0.015inch
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Weight
272g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM3 Datasheet
Download the complete datasheet for Honeywell 11SM3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

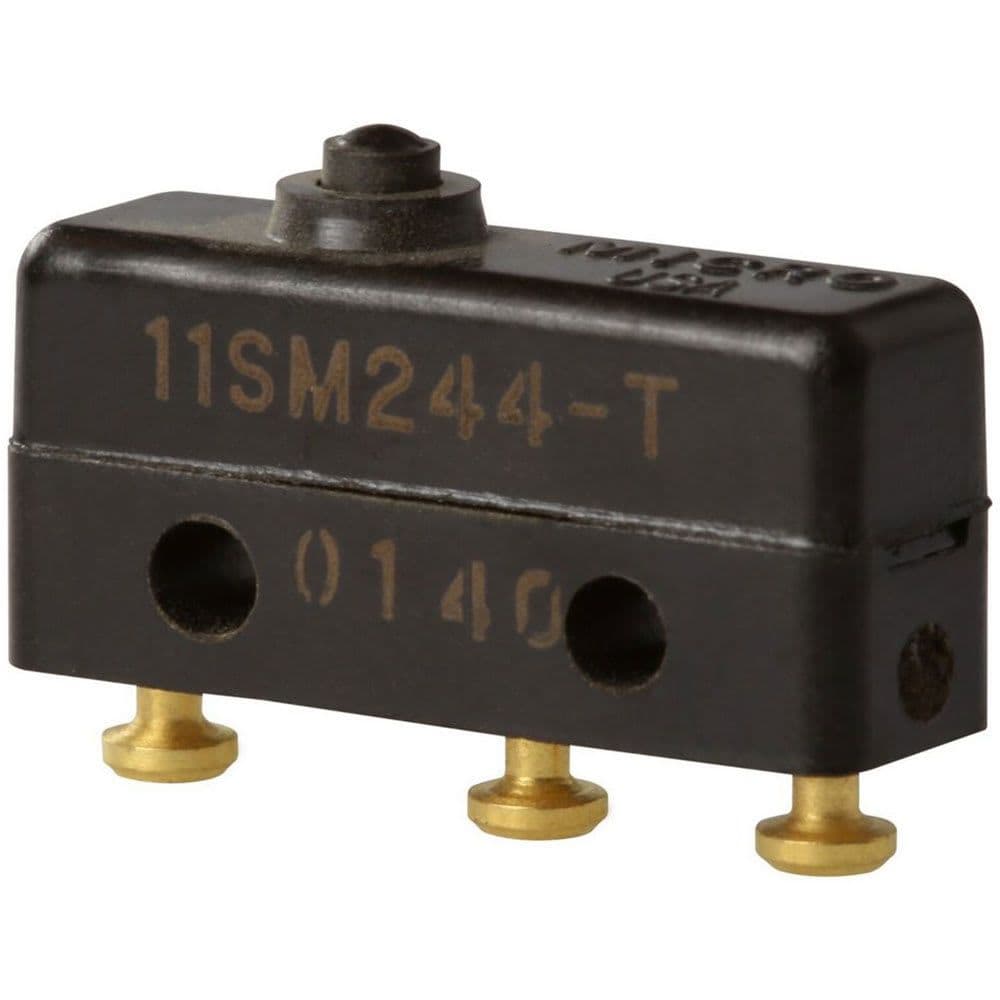

Product Images
