SPDT snap-action switch featuring a pin plunger actuator and turret solder termination. Rated for 5A at 250VAC and 30VDC, with a mechanical life of 10 million cycles. Operating force is 1.39N, and it functions as an On-Mom switch. Chassis mountable via screw or solder, with UL and CSA approvals.
Current Rating5A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 11SM3-T technical specifications.
General
Actuator Type
PIN PLUNGER
Approvals
UL, CSA
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Depth
6.4mm
Height
11.18mm
Lead Free
Lead Free
Length
19.8mm
Max Current Rating
5A
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw, Solder
Number of Poles
1
Number of Positions
2
Operating Force
139N
Operating Position
0.015inch
Orientation
Straight
Package Quantity
20
Packaging
Tray
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Weight
272g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM3-T Datasheet
Download the complete datasheet for Honeywell 11SM3-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

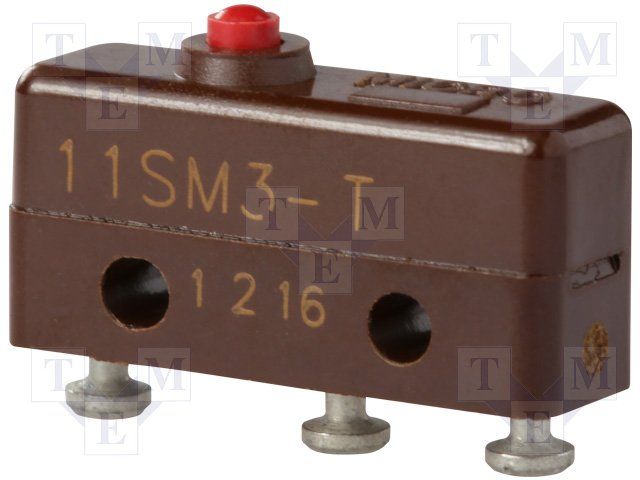

Product Images
