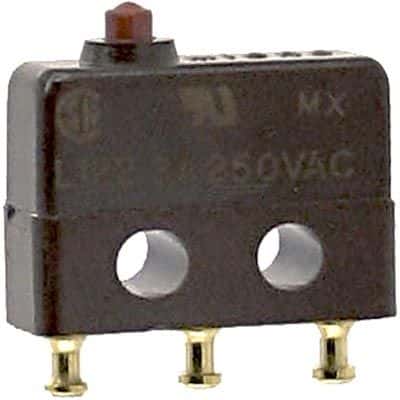

SPDT momentary snap acting switch featuring a plastic pin plunger actuator. Rated for 3A at 28VDC and 250VAC, with silver and gold contact material. Offers a mechanical life of 10 million cycles and operates within a temperature range of -55°C to 125°C. Mounting options include chassis, screw, and solder, with straight orientation and solder termination. UL, CSA, and CE approved, RoHS compliant.
Current Rating3A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 11SX1-T technical specifications.
General
Actuator Material
Plastic
Actuator Type
PIN PLUNGER
Approvals
UL, CSA, CE
Contact Current Rating
3A
Contact Material
Silver, Gold
Current Rating
3A
Depth
5.1mm
Height
12.73mm
Lead Free
Lead Free
Length
12.7mm
Max Current Rating
3A
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw, Solder
Number of Poles
1
Number of Positions
2
Operating Position
0.015inch
Orientation
Straight
Package Quantity
30
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
SX
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
28V
Weight
136g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SX1-T Datasheet
Download the complete datasheet for Honeywell 11SX1-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

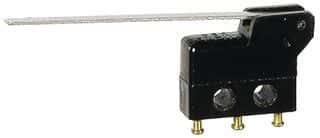

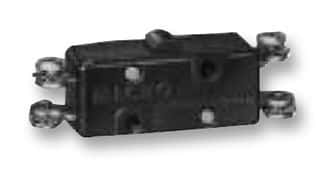

Product Images
