Honeywell
11TS15-2
Switch Toggle OFF ON SPST Round Lever Screw 20A 277VAC 559.27VA Panel Mount with Threads
Package125
Current Rating10A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 11TS15-2 technical specifications.
General
Actuator Length
16.51mm
Actuator Material
NICKEL PLATED
Actuator Type
Standard Round
Approvals
UL, CSA, CE
Package/Case
125
Contact Material
Silver, Cadmium
Current Rating
10A
Illumination Type
Non-Illuminated, Illuminated
Max Current Rating
10A
Max Operating Temperature
71°C
Min Operating Temperature
-54°C
Max Voltage Rating (AC)
277V
Mount
Bushing
Orientation
Straight
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TS
Switch Function
On-Off
Termination
Screw
Throw Configuration
SPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Honeywell 11TS15-2 Datasheet
Download the complete datasheet for Honeywell 11TS15-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

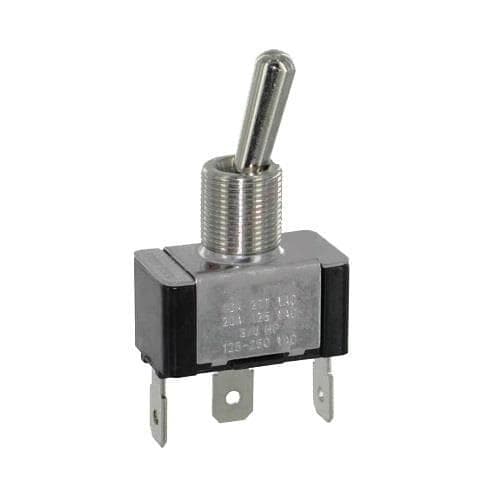

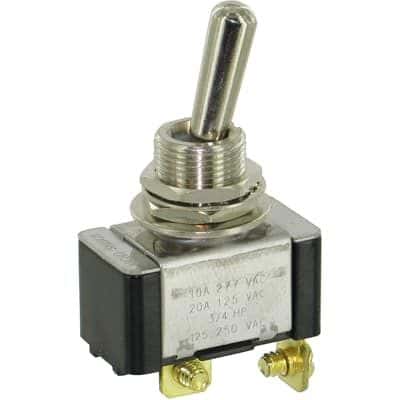

Product Images
