Honeywell
11TS15-5
Switch Toggle (ON) OFF ON SPDT Round Lever Screw 20A 277VAC 1118.55VA Panel Mount with Threads
Package125
Current Rating20A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 11TS15-5 technical specifications.
General
Actuator Length
16.51mm
Actuator Material
NICKEL PLATED
Actuator Type
Standard Round
Approvals
UL, CSA, CE
Package/Case
125
Contact Material
Silver, Cadmium
Current Rating
20A
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
71°C
Min Operating Temperature
-54°C
Max Voltage Rating (AC)
277V
Mount
Bushing
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TS
Switch Function
On-Off-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Honeywell 11TS15-5 Datasheet
Download the complete datasheet for Honeywell 11TS15-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

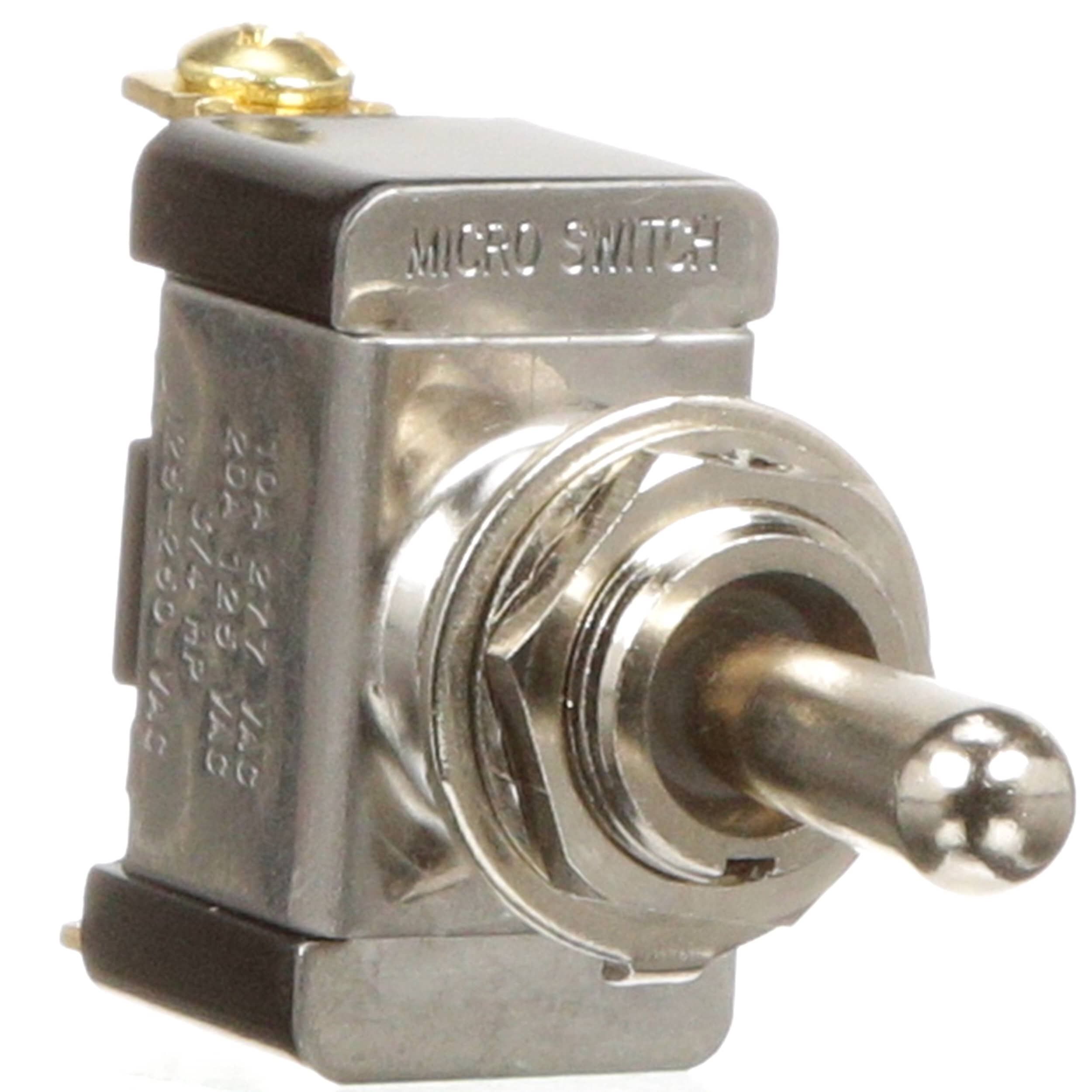

Product Images
