Technical Specifications
Honeywell 11TW8-3 technical specifications.
General
| Actuator Length | 17.27mm |
| Actuator Type | Standard Round |
| Contact Plating | Gold |
| Current Rating | 15A |
| Depth | 13.59mm |
| Illumination Type | Non-Illuminated |
| Max Current Rating | 5A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 28V |
| Mount | Bushing |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | Environment Proof |
| RoHS Compliant | Yes |
| Series | TW |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 11.34g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 11TW8-3 Datasheet
Download the complete datasheet for Honeywell 11TW8-3 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

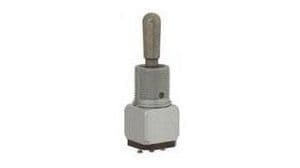

Product Images
