SPDT momentary snap acting switch with a 1A, 30VDC rating. Features gold contacts, a plastic plunger actuator, and wire terminal for straight orientation. Designed for panel or chassis mounting with solder termination. Operates within a temperature range of -53°C to 121°C, offering a mechanical life of 10,000,000 cycles.
Package125
Current Rating1A
MountingChassis Mount, Panel, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 12SX2-T technical specifications.
General
| Actuator Material | Plastic |
| Package/Case | 125 |
| Contact Material | Gold |
| Contact Type | 1 change-over |
| Current Rating | 1A |
| Depth | 5.08mm |
| Height | 10.2mm |
| Length | 12.7mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 121°C |
| Min Operating Temperature | -53°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Panel, Screw, Solder |
| Operating Force | 139N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | SX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 136g |
| Width | 5.08mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 12SX2-T Datasheet
Download the complete datasheet for Honeywell 12SX2-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

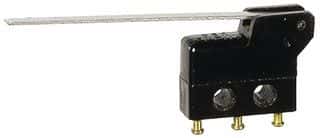

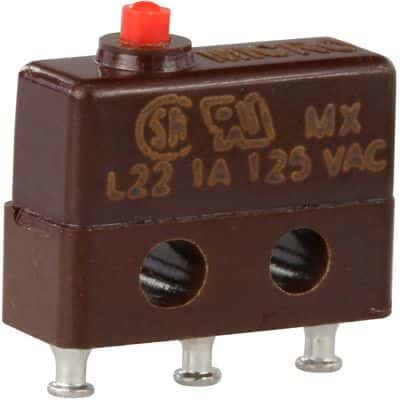

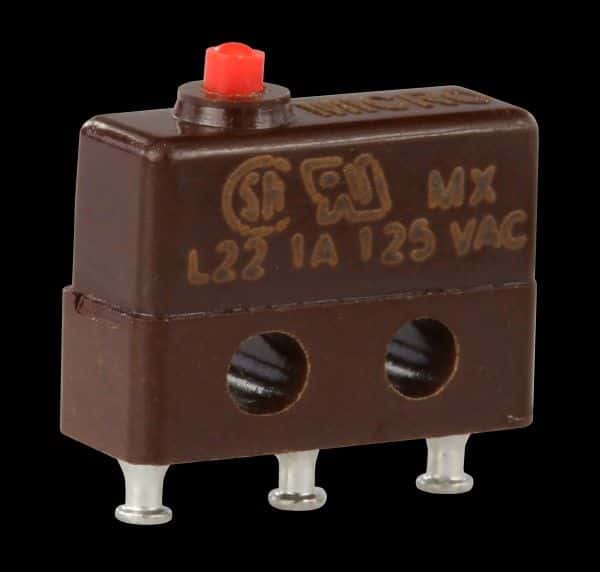

Product Images
