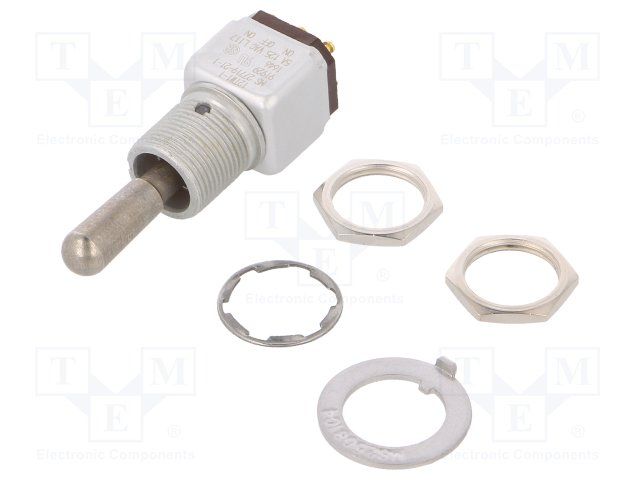

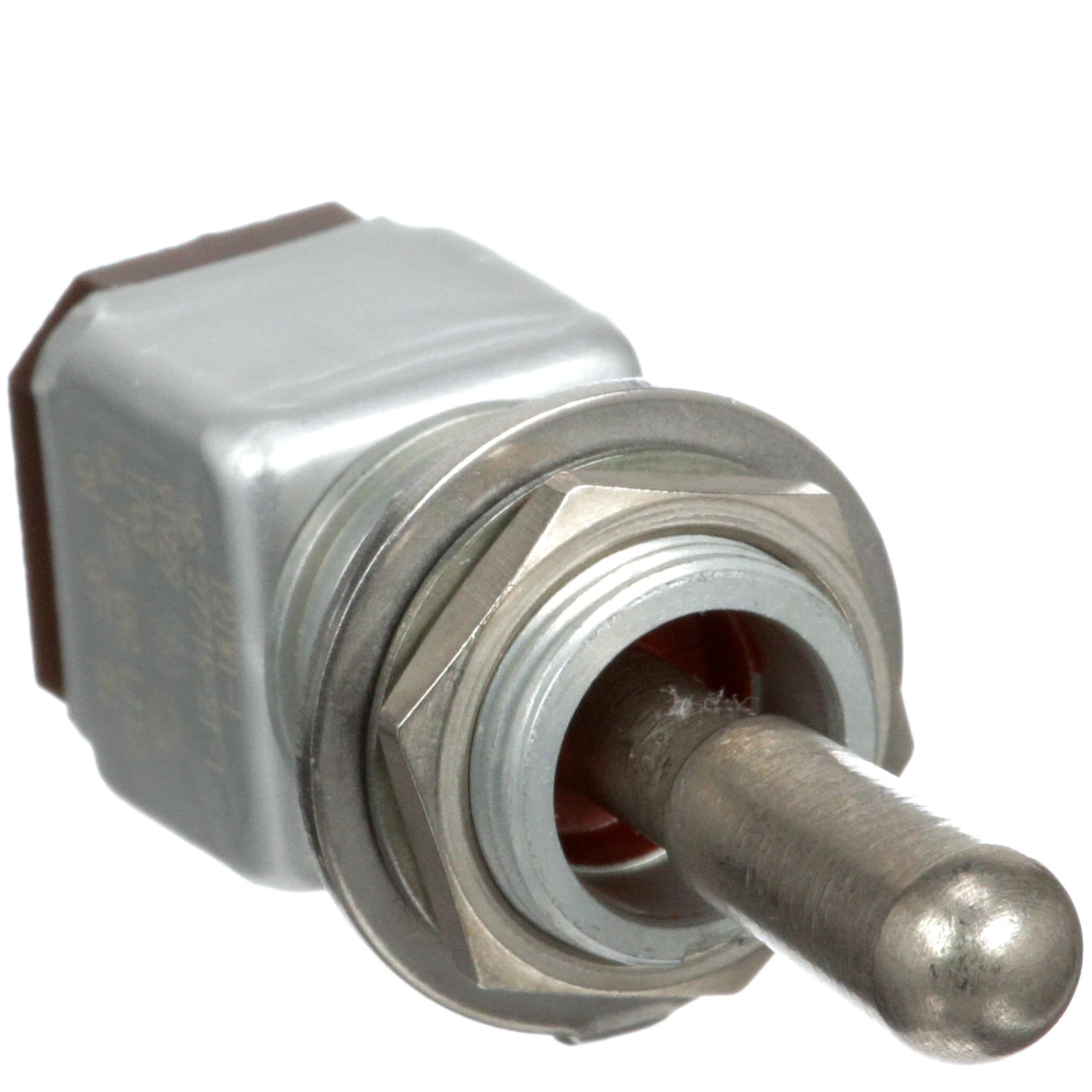

DPDT toggle switch featuring a latched, panel-mount threaded bushing for secure installation. Offers a 3-position, On-Off-On switch function with silver contacts and silver plating for reliable conductivity. Rated for 5A current and 125V AC / 28V DC, with a maximum operating temperature of 71°C and a minimum of -65°C. Environmentally sealed for durability, this non-illuminated switch utilizes solder termination and a standard round actuator measuring 17.27mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 12TW1-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 12TW1-1 technical specifications.
| Actuator Length | 17.27mm |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Contains Lead |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Bushing |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | Environment Sealed |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TW |
| Switch Function | On-Off-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
