DPDT toggle switch featuring a standard round lever and solder termination. Rated for 5A at 125VAC and 30VDC, this non-illuminated, panel-mount switch offers three positions with a momentary-off-momentary function. It operates within a temperature range of -65°C to 71°C and boasts environmentally sealed construction.
Current Rating5A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 12TW1-7 technical specifications.
General
Actuator Length
17.27mm
Actuator Type
Standard Round
Contact Material
Silver
Contact Plating
Silver
Current Rating
5A
Depth
13.7mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Contains Lead
Length
14.7mm
Max Current Rating
5A
Max Operating Temperature
71°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mount
Bushing
Number of Poles
2
Number of Positions
3
Orientation
Straight
Packaging
Bulk
Ratings
Environment Sealed
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TW
Switch Function
Mom-Off-Mom
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Honeywell 12TW1-7 Datasheet
Download the complete datasheet for Honeywell 12TW1-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

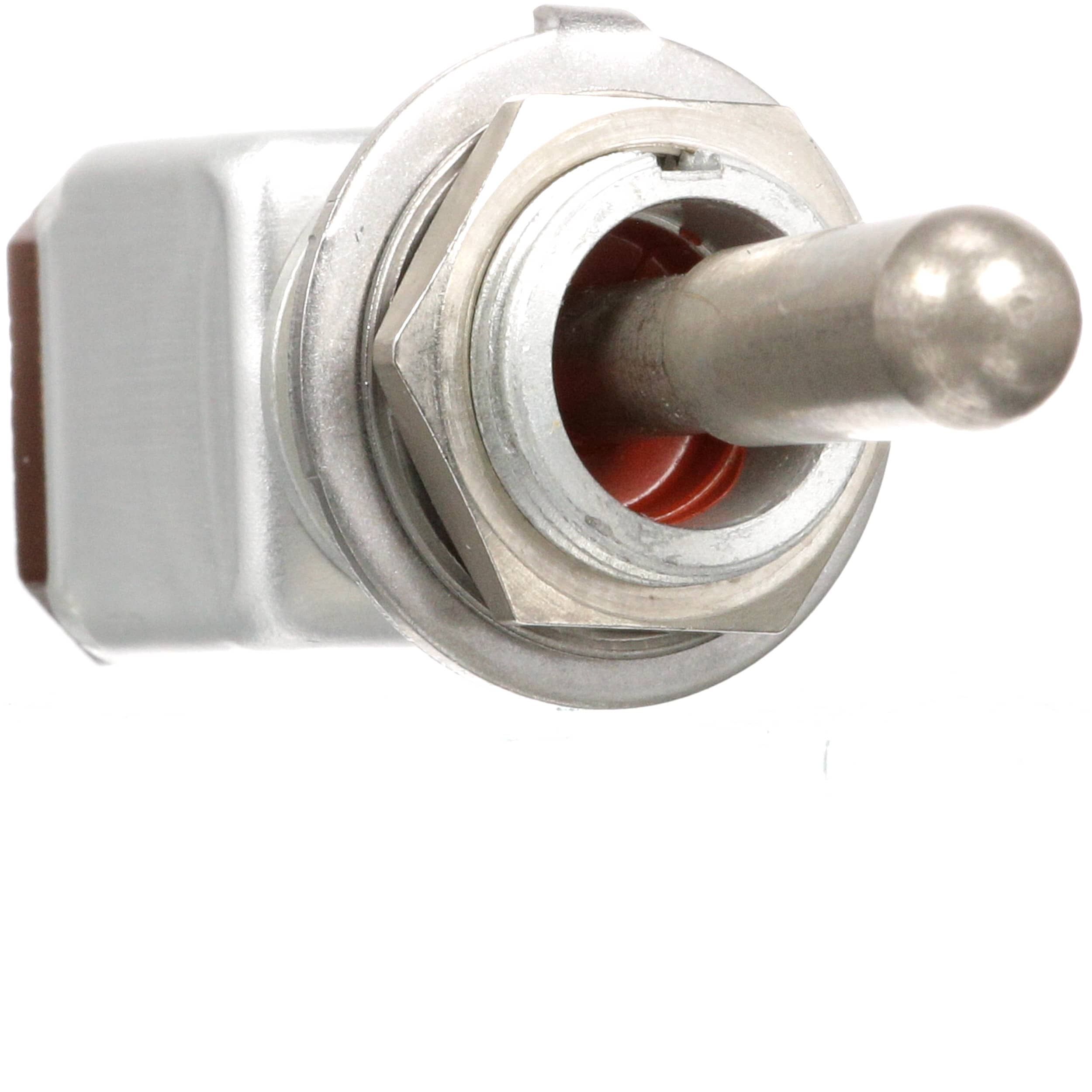

Product Images
