SPDT momentary snap acting switch featuring gold-plated contacts for reliable performance. Rated for 1A at 30VDC and 125VAC, with a 0.6mm actuator travel and 139N operating force. This panel mount switch offers a mechanical life of 10,000,000 cycles and operates within a temperature range of -53°C to 85°C. Termination is via solder, and it includes a plastic plunger actuator.
Current Rating1A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 13SX21-T technical specifications.
General
| Actuator Material | Plastic |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 5.08mm |
| Length | 12.7mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -53°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 139N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | SX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 136g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 13SX21-T Datasheet
Download the complete datasheet for Honeywell 13SX21-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

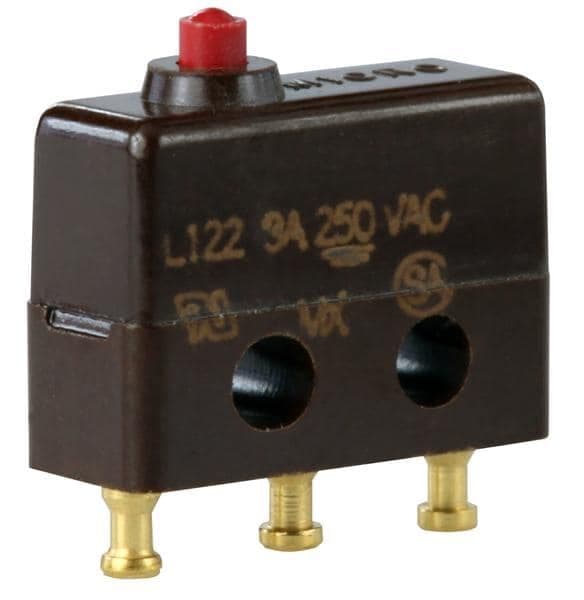

Product Images
