SPDT momentary snap acting/limit switch featuring a plastic plunger actuator and wire terminal. Rated for 1A at 30VDC and 125VAC, with gold contacts and a mechanical life of 10 million cycles. Operating force is 170N with an operating position of 0.015 inches. This RoHS compliant component offers chassis, screw, or solder mounting and operates within a temperature range of -53°C to 121°C.
Current Rating1A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 13SX96-T technical specifications.
General
| Actuator Material | Plastic |
| Contact Material | Gold |
| Current Rating | 1A |
| Depth | 5.08mm |
| Length | 12.7mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 121°C |
| Min Operating Temperature | -53°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 170N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | SX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 136g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 13SX96-T Datasheet
Download the complete datasheet for Honeywell 13SX96-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

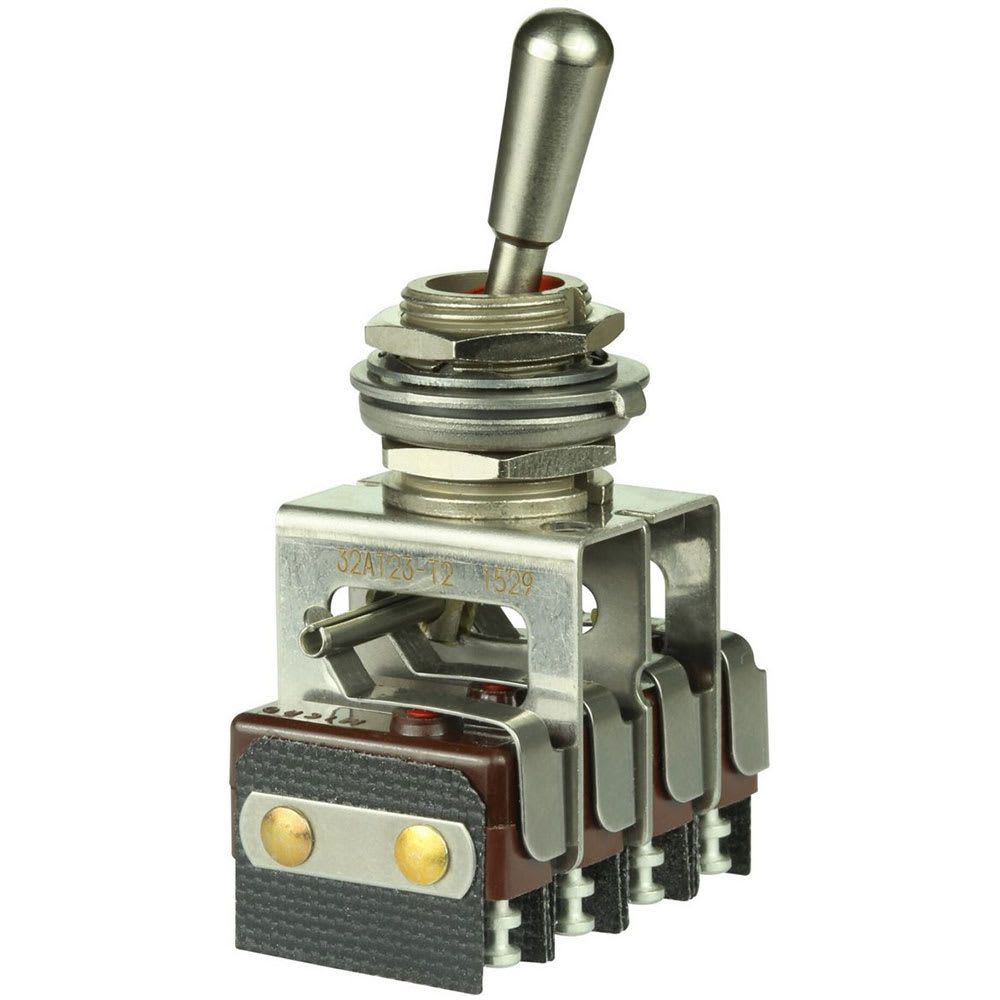

Product Images
