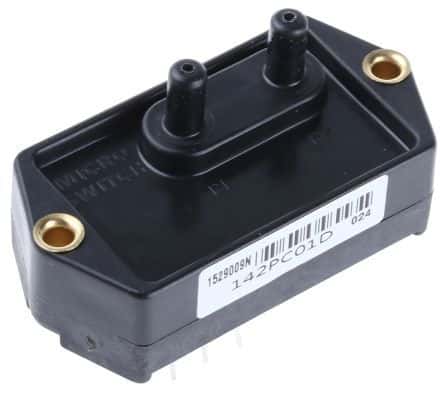

Differential pressure sensor IC with analog voltage output, featuring 0.75% accuracy and linearity. Operates within a 7V to 16V supply voltage range, drawing 8mA current. Designed for differential pressure measurements up to 20PSI, with a 1ms response time. Packaged in a SIP with screw, through-hole, and PCB mounting options.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 142PC01D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.75% |
| Package/Case | SIP |
| Current Rating | 8mA |

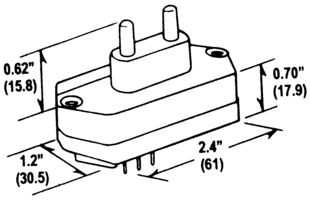

| Height | 18.5mm |
| Length | 59.8mm |
| Linearity | 0.75% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Pressure | 20PSI |
| Max Supply Current | 20mA |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 7V |
| Mount | Screw, Through Hole, PCB |
| Number of Ports | 2 |
| Operating Pressure | 1PSI |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 8V |
| Output Current | 10mA |
| Output Type | Analog Voltage, Analog |
| Output Voltage | 6V |
| Packaging | Bulk |
| Port Style | Barbless |
| Pressure Type | Differential |
| Primary Type | PRESSURE |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 140PC |
| Supply Current | 8mA |
| Termination | PC Pin |
| Voltage Rating | 8V |
| DC Rated Voltage | 8V |
| Weight | 28g |
| Width | 30mm |
| RoHS | Compliant |
