Board mount absolute pressure sensor with a 0-15 psi range. Features 0.4% accuracy, 1ms response time, and an analog voltage output. Operates from 7V to 16V supply voltage with a maximum input/output current of 20mA. Housed in a polyester/PET SIP package with PC pin termination, suitable for screw mounting. Operating temperature range is -40°C to 85°C.
PackageSIP
Current8mA
Voltage Rating8V
MountingScrew
Quick Jump:
Technical Specifications
Honeywell 142PC15A technical specifications.
General
| Accuracy | 0.4% |
| Body Material | Polyester, PET |
| Package/Case | SIP |
| Depth | 18.5mm |
| Height | 18.5mm |
| Input Current | 20mA |
| Length | 59.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Pressure | 45PSI |
| Max Supply Current | 20mA |
| Max Supply Voltage (DC) | 16V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 7V |
| Mount | Screw |
| Operating Pressure | 15PSI |
| Operating Supply Voltage | 8V |
| Output Current | 10mA |
| Output Type | Analog Voltage, Analog |
| Output Voltage | 6V |
| Package Quantity | 10 |
| Packaging | Bulk |
| Port Style | Barbless |
| Pressure Type | Absolute |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| Series | 140PC |
| Supply Current | 8mA |
| Termination | PC Pin |
| Voltage Rating | 8V |
| DC Rated Voltage | 8V |
| Weight | 28g |
| Width | 30mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 142PC15A Datasheet
Download the complete datasheet for Honeywell 142PC15A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

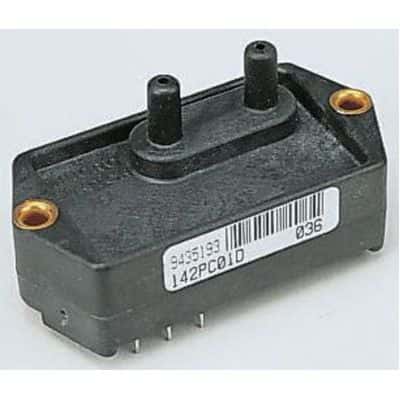

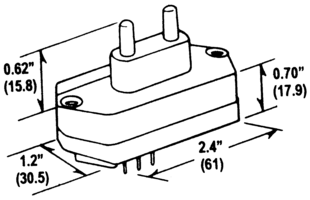

Product Images
