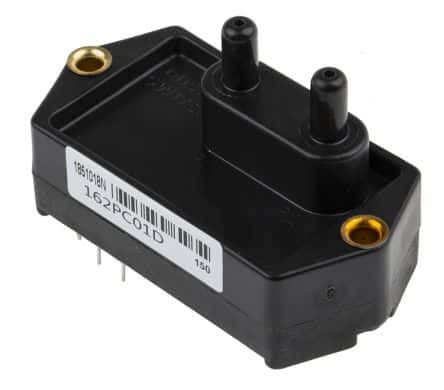

Differential pressure sensor IC with analog voltage output, featuring 1% accuracy and 0.25% linearity. Operates within a 6V to 16V supply voltage range, drawing a typical 8mA operating current. Designed for PCB mounting with solder termination, this sensor handles differential pressures up to 5PSI, with an operating pressure of 1PSI and a fast 1ms response time. The polyester and PET body material is housed in a SIP package, suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 162PC01D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1% |
| Body Material | Polyester, PET |
| Package/Case | SIP |
| Depth | 34.3mm |
| Input Current | 20mA |
| Linearity | 0.25% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 5PSI |
| Max Supply Current | 20mA |
| Max Supply Voltage (DC) | 16V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 6V |
| Mount | Screw, PCB |
| Operating Pressure | 1PSI |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 8V |
| Output | ANALOG |
| Output Type | Voltage, Analog |
| Output Voltage | 6V |
| Package Quantity | 10 |
| Port Style | Barbless |
| Pressure Type | Differential |
| Primary Type | PRESSURE SENSOR |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| Series | 160PC |
| Supply Current | 8mA |
| Termination | Solder |
| Voltage Rating | 8V |
| DC Rated Voltage | 8V |
| Width | 30mm |
| RoHS | Compliant |
