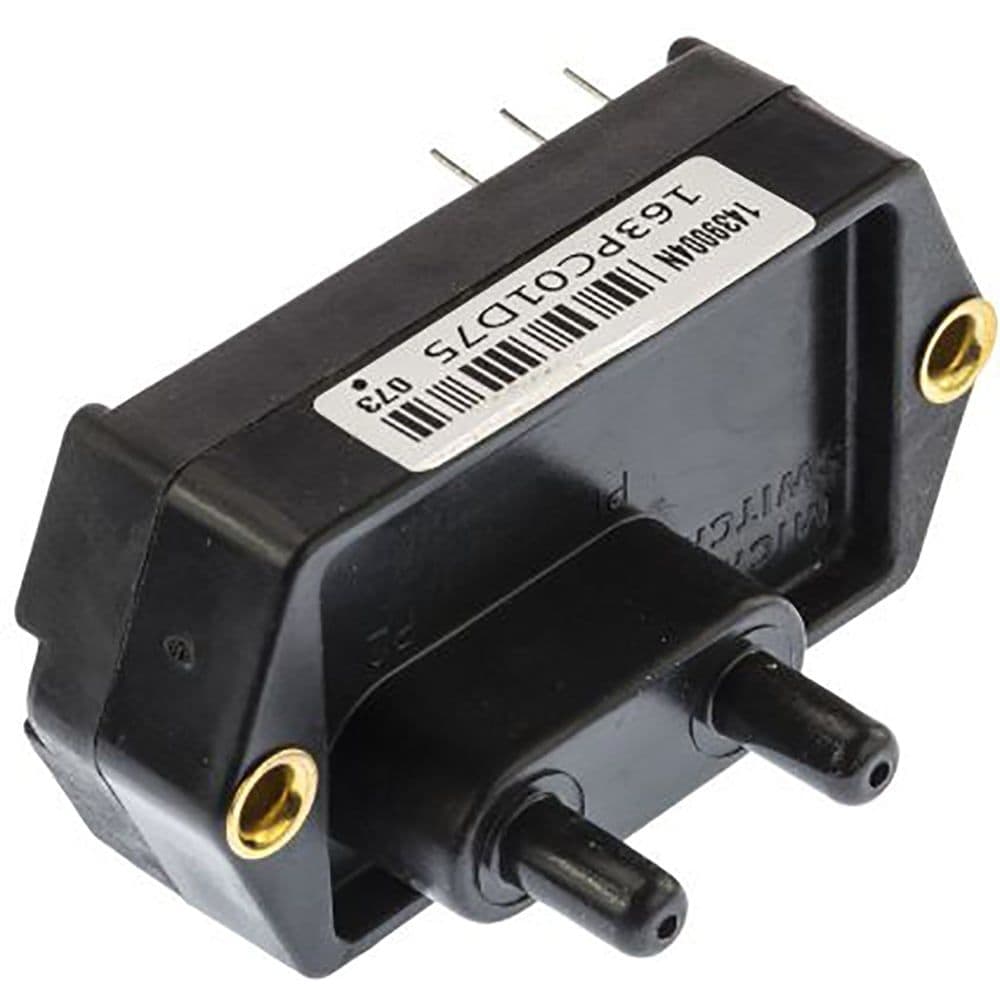

Board mount differential pressure sensor with an operating range of -2.5inH2O to 2.5inH2O. Features 2% accuracy and 0.25% linearity, with an analog voltage output. Operates from a 6V to 16V supply voltage and has a response time of 1ms. Constructed with polyester and PET body materials, this sensor is designed for screw mounting and utilizes PC pin termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 163PC01D75 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 163PC01D75 technical specifications.
| Accuracy | 2% |
| Body Material | Polyester, PET |
| Depth | 33.7mm |
| Input Current | 20mA |
| Linearity | 0.25% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 5PSI |
| Max Supply Current | 20mA |
| Max Supply Voltage (DC) | 16V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 6V |
| Mount | Screw |
| Operating Pressure | 0.09PSI |
| Operating Supply Voltage | 8V |
| Output | ANALOG |
| Output Type | Analog Voltage, Analog |
| Output Voltage | 6V |
| Package Quantity | 10 |
| Port Style | Barbless |
| Pressure Type | Differential |
| Primary Type | PRESSURE SENSOR |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| Series | 160PC |
| Supply Current | 8mA |
| Termination | PC Pin |
| Voltage Rating | 8V |
| DC Rated Voltage | 8V |
| Width | 30mm |
| RoHS | Compliant |
