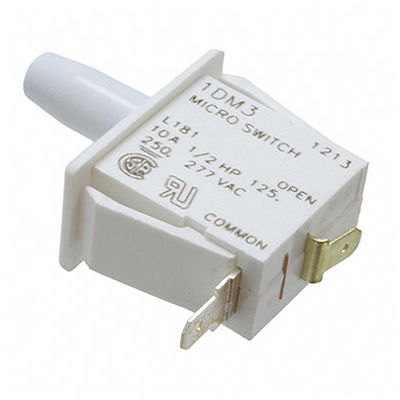

Snap acting switch featuring a plunger actuator and SPST/SPDT throw configuration. Rated for 10A at 125V AC, with silver contacts and a quick connect terminal. Offers a 10A current rating, 82°C max operating temperature, and a mechanical life of 1,000,000 cycles. Panel mountable with a 417N operating force and a differential travel of 114mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 1DM3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PLUNGER |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 17.27mm |
| Differential Travel | 114mm |
| Height | 49.78mm |
| Length | 38.1mm |
| Material | Plastic |
| Max Operating Temperature | 82°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -37°C |
| Mount | Panel, Snap in |
| Operating Force | 417N |
| Orientation | Straight |
| Overtravel | 953mm |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | DM |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST, SPDT |
| Voltage Rating (AC) | 125V |
| RoHS | Compliant |
