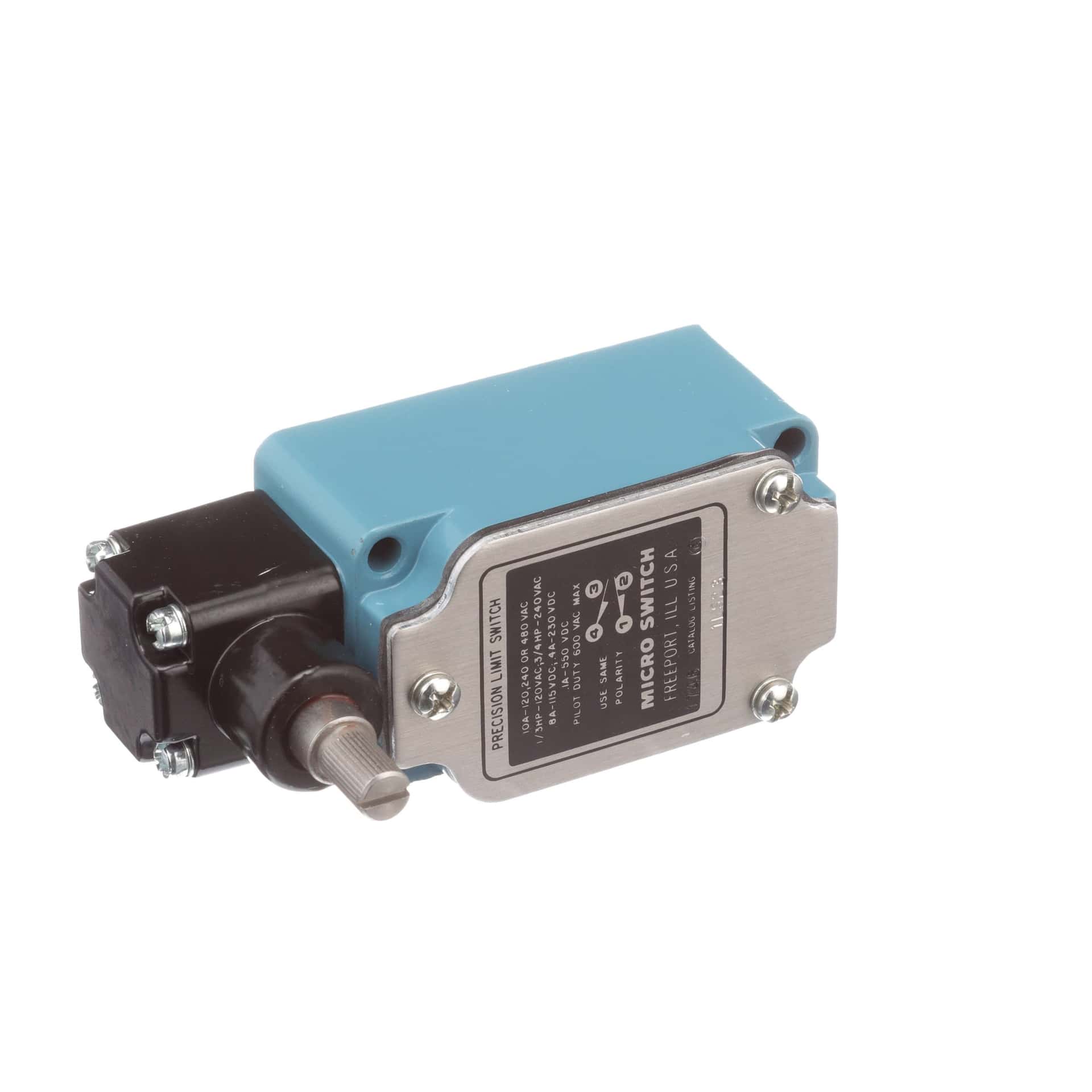

Honeywell
1LS23
Snap Acting/Limit Switch, SPDT, Momentary, 0.8A, 115VDC, Screw Terminal, Steel Shaft Plunger Actuator, Panel Mount,
Package120
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 1LS23 technical specifications.
General
Actuator Type
Rotary
Package/Case
120
Contact Type
Snap Action
Current Rating
10A
Depth
28.7mm
Length
102.9mm
Max Current Rating
10A
Max Operating Temperature
71°C
Min Operating Temperature
-29°C
Max Voltage Rating (DC)
550V
Mount
Chassis Mount, Screw
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
LS
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
115V
Width
30.2mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 1LS23 Datasheet
Download the complete datasheet for Honeywell 1LS23 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
