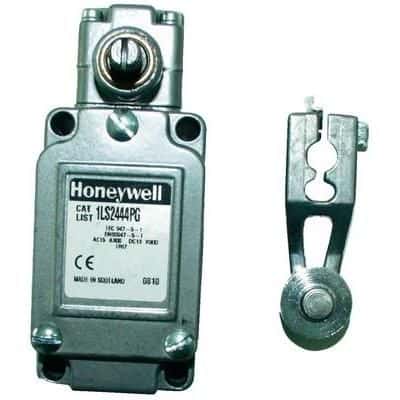

Honeywell 1LS244-4C technical specifications.
| Actuator Type | ROLLER LEVER |
| Package/Case | 125 |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 58.5mm |
| Length | 111.4mm |
| Material | Aluminium |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -10°C |
| Operating Force | 0.51N |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Series | LS |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 550V |
| DC Rated Voltage | 480V |
| Width | 40mm |
| RoHS | Compliant |
Download the complete datasheet for Honeywell 1LS244-4C to view detailed technical specifications.
