SPST toggle switch featuring a round lever and screw termination, rated for 20A at 277VAC and 250VDC. This panel-mount switch offers a straight orientation, non-illuminated or illuminated options, and a robust IP67 waterproof and dust-tight rating. With a 15.7mm depth and 28.6mm length, it operates within a -40°C to 71°C temperature range and is RoHS compliant.
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 1NT1-2 technical specifications.
General
Actuator Length
17.02mm
Actuator Type
Standard Round
Approvals
UL, CSA
Contact Current Rating
20A
Contact Material
Silver, Cadmium
Current Rating
15A
Depth
15.7mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
28.6mm
Max Current Rating
20A
Max Operating Temperature
71°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Bushing
Number of Poles
1
Number of Positions
2
Orientation
Straight
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
NT
Switch Function
On-Off
Termination
Screw
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Honeywell 1NT1-2 Datasheet
Download the complete datasheet for Honeywell 1NT1-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

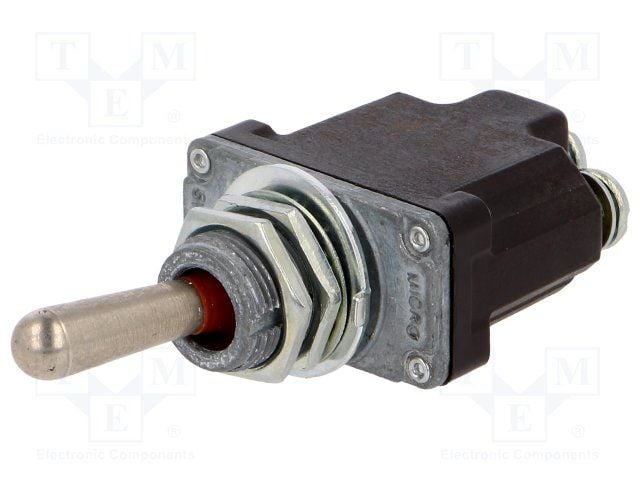

Product Images
