SPDT toggle switch featuring a straight, round lever actuator with a 17.02mm length. This panel-mount switch offers screw termination and a 20A maximum current rating at 277VAC or 250VDC. It operates within a temperature range of -40°C to 71°C and boasts IP67, waterproof, and dust-tight ratings. The switch is RoHS compliant and suitable for both non-illuminated and illuminated applications.
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
Honeywell 1NT1-3-NH technical specifications.
General
Actuator Length
17.02mm
Actuator Type
Standard Round
Contact Material
Silver, Cadmium
Current Rating
15A
Depth
15.7mm
Illumination Type
Non-Illuminated, Illuminated
Length
28.4mm
Max Current Rating
20A
Max Operating Temperature
71°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Panel
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
NT
Switch Function
On-On
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
31.75g
Compliance
RoHS
Compliant
Datasheet
Honeywell 1NT1-3-NH Datasheet
Download the complete datasheet for Honeywell 1NT1-3-NH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

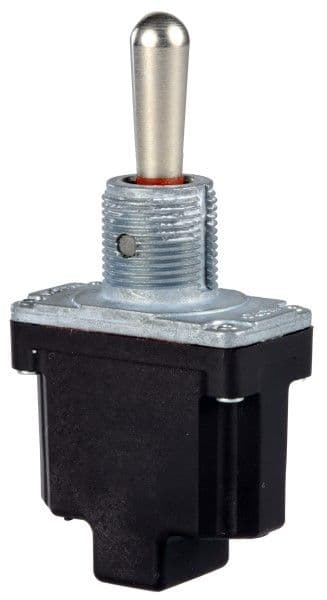

Product Images
