SPDT toggle switch featuring a non-illuminated, standard round lever with screw terminals. Rated for 15A at 277VAC and 250VDC, with an additional 10A rating at 125VAC. Operates within a temperature range of -40°C to 71°C. This panel-mount switch boasts IP67, waterproof, and dust-tight ratings, with a bushing mount and straight orientation. RoHS compliant.
Current Rating10A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 1NT1-5 technical specifications.
General
| Actuator Length | 17.02mm |
| Actuator Type | Standard Round |
| Contact Material | Silver, Cadmium |
| Current Rating | 10A |
| Depth | 15.7mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Length | 28.6mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | NT |
| Switch Function | On-Off-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 1NT1-5 Datasheet
Download the complete datasheet for Honeywell 1NT1-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

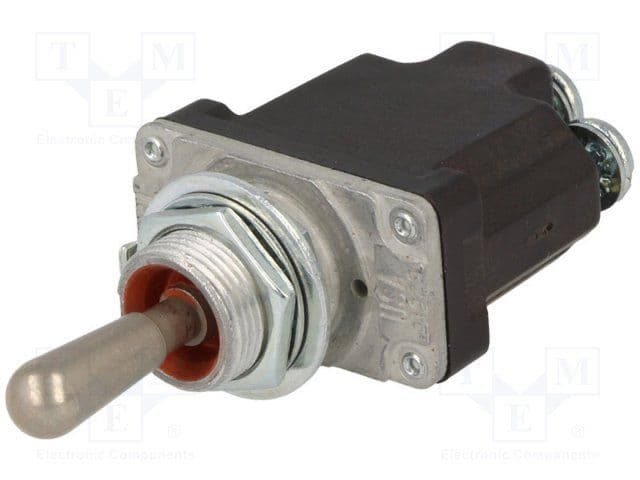

Product Images
