SPDT toggle switch featuring a round, standard actuator with a 17.3mm lever. Rated for 15A at 277VAC and 250VDC, with a 372.85VA rating. This non-illuminated, panel-mount switch offers screw terminals and a 3-position (Mom-Off-Mom) function. Constructed with silver, cadmium contacts and a lead-free design, it boasts IP67, waterproof, and dust-tight ratings, operating between -40°C and 71°C.
Package125
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 1NT1-7 technical specifications.
General
| Actuator Length | 17.3mm |
| Actuator Type | Standard Round |
| Approvals | UL |
| Package/Case | 125 |
| Contact Current Rating | 15A |
| Contact Material | Silver, Cadmium |
| Current Rating | 15A |
| Depth | 15.7mm |
| Height | 58.7mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 28.6mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | NT |
| Switch Function | Mom-Off-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 1NT1-7 Datasheet
Download the complete datasheet for Honeywell 1NT1-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

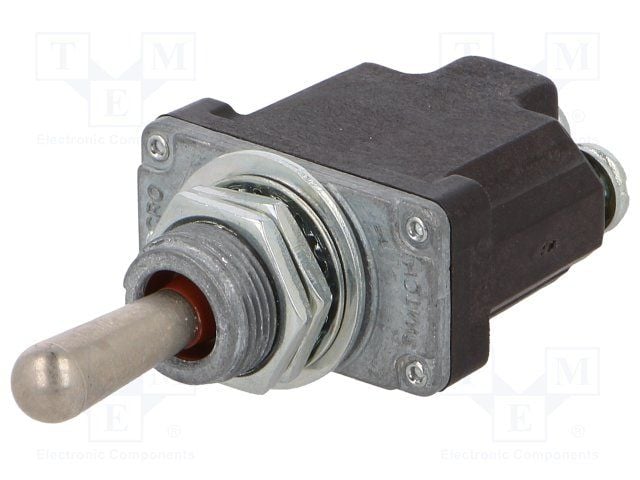

Product Images
