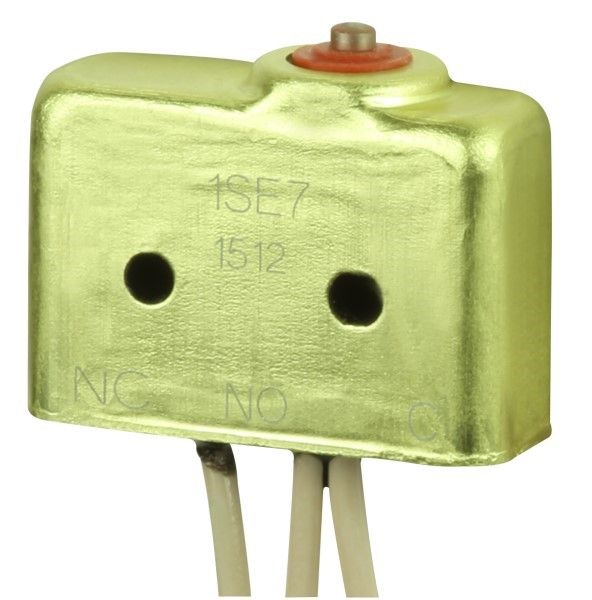

Honeywell 1SE7 technical specifications.
| Current Rating | 500mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -54°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Panel, Screw, Wire |
| Operating Force | 482gf |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | Waterproof |
| Series | SE |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| Weight | 18.43g |
| RoHS | Compliant |
Download the complete datasheet for Honeywell 1SE7 to view detailed technical specifications.
