SPDT snap-action switch featuring a plastic pin plunger actuator. Rated for 7A at 250VAC and 28VDC, with silver and gold contact materials. Offers a mechanical life of 1,000,000 cycles and operates within a temperature range of -53°C to 121°C. Mounting options include chassis, screw, and solder, with solder termination. This RoHS compliant component has a 1.39N operating force and a 0.015-inch operating position.
Current Rating7A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 1SX48-T technical specifications.
General
| Actuator Material | Plastic |
| Actuator Type | PIN PLUNGER |
| Approvals | UL, CSA |
| Contact Current Rating | 7A |
| Contact Material | Silver, Gold |
| Current Rating | 7A |
| Depth | 5.1mm |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Current Rating | 7A |
| Max Operating Temperature | 121°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -53°C |
| Mount | Chassis Mount, Screw, Solder |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 139N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | SX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 28V |
| Weight | 136g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 1SX48-T Datasheet
Download the complete datasheet for Honeywell 1SX48-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

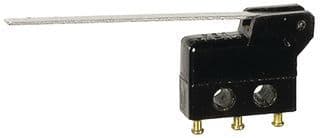

Product Images
