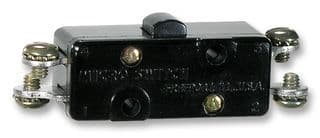

DPDT momentary snap acting/limit switch with solder terminals and a plastic plunger actuator. Features a 10A current rating at 250V AC, operating force of 389N, and a mechanical life of 7 million cycles. This panel mount switch operates between -55°C and 125°C, with a pretravel of 0.06 inches and an operating position of 0.46 inches. RoHS compliant with a straight orientation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 1TB1-3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 1TB1-3 technical specifications.
| Actuator Type | PIN PLUNGER |
| Current Rating | 10A |
| Depth | 17.5mm |
| Length | 31.8mm |
| Material | Plastic |
| Max Current Rating | 10A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 7000000Cycles |
| Mount | Chassis Mount, Panel, Screw, Solder |
| Operating Force | 389N |
| Operating Position | 0.46inch |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Bulk |
| Pretravel | 0.06inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | TB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT, DPDT |
| Voltage Rating (AC) | 250V |
| Weight | 907g |
| RoHS | Compliant |
